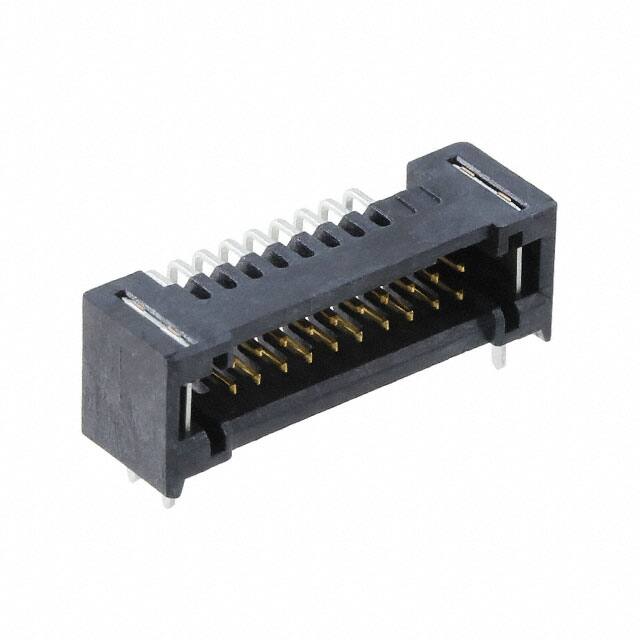

TFM-110-01-L-D-RE1-WT

Specifications

Contact Materials

Phosphor Bronze

Insulation Color

Black

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Din Conformance

NO

Additional Feature

WITH WELD TAB, ROHS COMPLIANT

Current Rating Amps

2.9A per Contact

Style

Board to Board or Cable

Contact Lengthmating

0.139 3.53mm

Mounting Option1

LOCKING

Depth

8mm

RoHS Durumu

ROHS3 Compliant

Option

GENERAL PURPOSE

Max Current Rating

5A

Contact Length Post

0.078 1.98mm

Reliability

COMMERCIAL

Plating Thickness

15μin

Yayın Yılı

2011

Contact Finish Mating

Gold

Contact Type

Male Pin

Contact Finish Post

Tin

Uzunluk

19.38mm

Row Spacing Mating

0.050 (1.27mm)

Contact Shape

Square

Pcb Contact Pattern

RECTANGULAR

Housing Material

Polymer

Gender

Male

Number Of Pcb Rows

2

Ambalaj

Tube

Montaj Tipi

Through Hole, Right Angle

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Ul Flammability Code

94V-0

Reference Standard

UL, CSA

Mixed Contacts

NO

Seri

Tiger Eye™ TFM

Parça Durumu

Active

Sıra Sayısı

2

Pozisyon Sayısı

20

Material Flammability Rating

UL94 V-0
