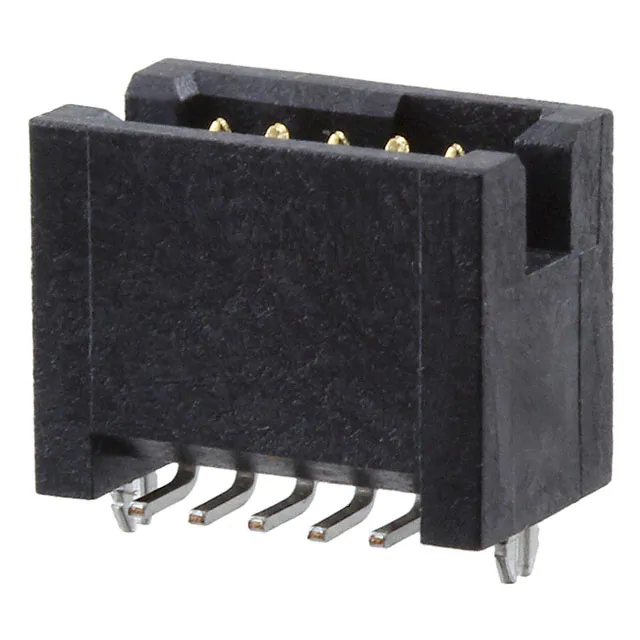

TFM-105-12-S-D-LC

Specifications

Mating Contact Pitch

0.05 inch

Polarization Key

ENDS

Insulation Resistance

5000000000Ohm

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

3 Weeks

Connector Type

Header

Total Number Of Contacts

10

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Max Voltage Rating Ac

350V

Contact Finish Thickness Mating

30.0μin 0.76μm

Çalışma Sıcaklığı

-55°C~125°C

Filter Feature

NO

Insulation Height

0.290 7.37mm

Nominal Gerilim

275VAC

Pitch Mating

0.050 1.27mm

Iec Conformance

NO

JESD-609 Kodu

e3

Orientation

Straight

Fastening Type

Push-Pull

Özellikler

Board Lock

Seri

Tiger Eye™ TFM

Parça Durumu

Active

Mixed Contacts

NO

Reference Standard

UL

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

10

Sıra Sayısı

2

Montaj Tipi

Surface Mount

Ambalaj

Tube

Number Of Pcb Rows

2

Insulation Materials

Liquid Crystal Polymer (LCP)

Ul Flammability Code

94V-0

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR

Housing Material

Polymer

Gender

Male

Yayın Yılı

2010
