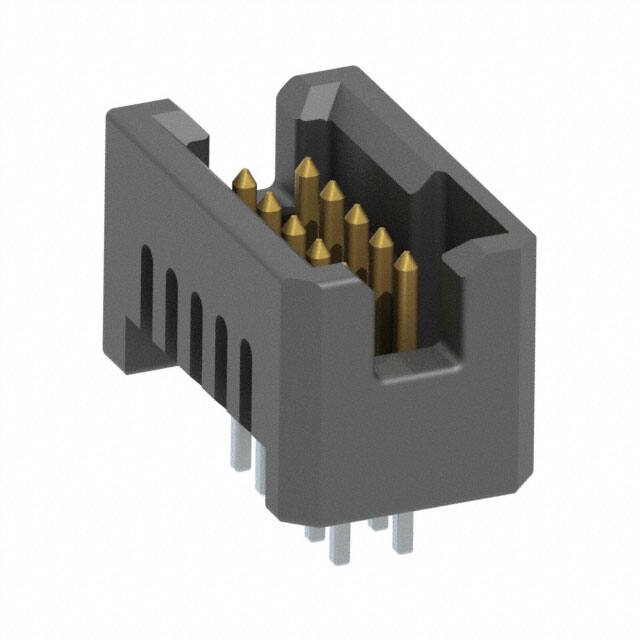

TFM-105-01-L-D

Specifications

Montaj Tipi

Through Hole

Ambalaj

Tube

Number Of Pcb Rows

2

Mounting Option2

LOCKING

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Positions Loaded

All

Parça Durumu

Active

Seri

Tiger Eye™ TFM

Mixed Contacts

NO

Reference Standard

UL, CSA

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

10

Sıra Sayısı

2

Connector Type

Header

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

Not Applicable

Max Voltage Rating Ac

350V

Contact Finish Thickness Mating

15.0μin 0.38μm

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Pitch Mating

0.050 1.27mm

Nominal Gerilim

275VAC

Insulation Height

0.220 5.60mm

Filter Feature

NO

Iec Conformance

NO

JESD-609 Kodu

e3

Fastening Type

Push-Pull

Orientation

Straight

Mating Contact Pitch

0.05 inch

Polarization Key

POLARIZED HOUSING

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

3 Weeks

Terminal

Solder

Insulation Color

Black

Contact Materials

Phosphor Bronze

Additional Feature

ROHS COMPLIANT

Din Conformance

NO

Shrouding

Shrouded - 4 Wall
