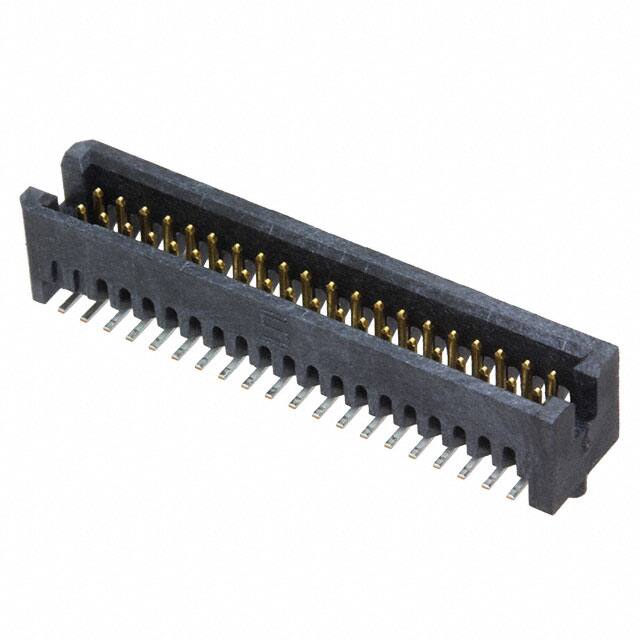

TFC-120-02-L-D-A

Specifications

Sıra Sayısı

2

Number Of Positions Loaded

All

Contact Finish Thickness Mating

10.0μin 0.25μm

Nominal Gerilim

275VAC

Fastening Type

Push-Pull

Additional Feature

TIGER EYE SYSTEM, SHROUDED

Seri

Tiger Eye™ TFC

Number Of Pcb Rows

2

Filter Feature

NO

Total Number Of Contacts

40

Number Of Conductors

ONE

Iec Conformance

NO

JESD-609 Kodu

e3

Current Rating Amps

3.1A per Contact

Contact Finish Post

Tin

Contact Type

Male Pin

Reference Standard

UL, CSA

Yayın Yılı

2013

Max Voltage Rating Ac

350V

Pitch Mating

0.050 1.27mm

Contact Materials

Phosphor Bronze

Terminal

Solder

Pcb Contact Pattern

RECTANGULAR

Polarization Key

POLARIZED HOUSING

Contact Shape

Square

Row Spacing Mating

0.050 (1.27mm)

Contact Resistance

15mOhm

ECCN Kodu

EAR99

Contact Lengthmating

0.133 3.38mm

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Insulation Resistance

5000000000Ohm

Option

GENERAL PURPOSE

Connector Type

Header

Depth

5.72mm

Din Conformance

NO

Plating Thickness

10μin

Kurşunsuz Kodu

yes

Mating Contact Pitch

0.05 inch

Housing Material

Polymer
