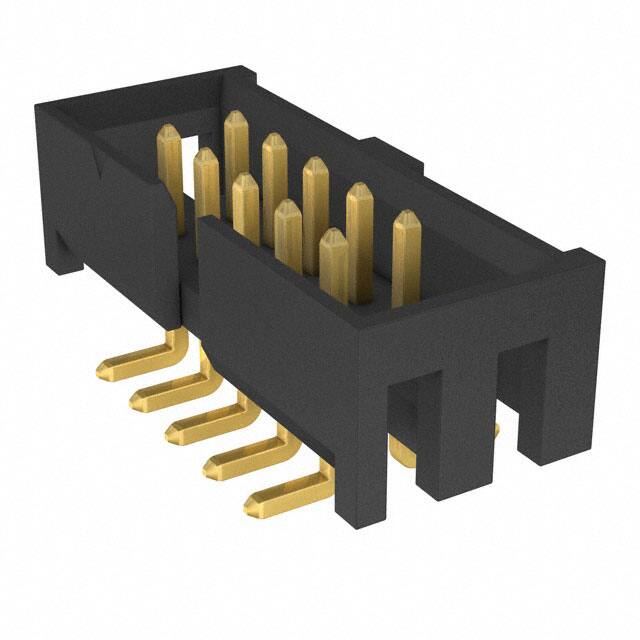

STMM-105-02-G-D-SM

Specifications

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Positions Loaded

All

Ambalaj

Tube

Montaj Tipi

Surface Mount

Number Of Pcb Rows

2

Radyasyon Dayanımı

No

Pozisyon Sayısı

10

Sıra Sayısı

2

Parça Durumu

Active

Seri

Flex Stack, STMM

Mixed Contacts

NO

Reference Standard

UL

Pitch Mating

0.079 2.00mm

Filter Feature

NO

Insulation Height

0.190 4.83mm

JESD-609 Kodu

e4

Iec Conformance

NO

Özellikler

Keying Slot

Fastening Type

Push-Pull

Orientation

Straight

Connector Type

Header

Total Number Of Contacts

10

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

20.0μin 0.51μm

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Polarization Key

POLARIZED HOUSING

Contact Finish Thickness Post

3.00μin 0.076μm

Fabrika Tedarik Süresi

3 Weeks

Mating Contact Pitch

0.079 inch

Din Conformance

NO

Shrouding

Shrouded - 4 Wall

Insulation Color

Black

Terminal

Solder

Contact Materials

Phosphor Bronze

Max Current Rating

3A

Option

GENERAL PURPOSE

RoHS Durumu

ROHS3 Compliant

Depth

6.51mm
