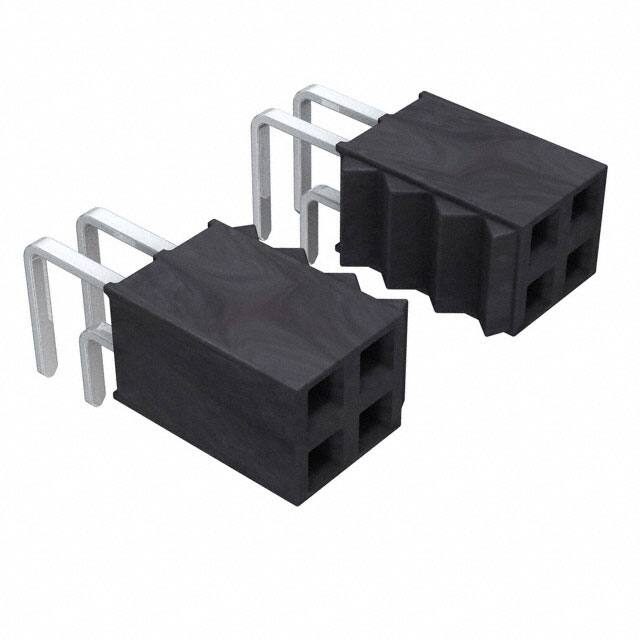

SSW-105-02-T-D-RA

Specifications

Lead Length

2.54mm

Orientation

Right Angle

Çalışma Sıcaklığı

-55°C~105°C

Number Of Pcb Rows

2

Iec Conformance

NO

Voltage Rated Dc

655V

Housing Color

Black

Mounting Option1

LOCKING

Lead Pitch

2.54mm

Contact Type

Forked

Housing Material

Polymer

Voltage Rated Ac

465V

Kurşunsuz Kodu

yes

Body Breadth

0.195 inch

Contact Gender

FEMALE

Pcb Contact Pattern

RECTANGULAR

Depth

12.57mm

Filter Feature

NO

Pitch Mating

0.100 2.54mm

Option

GENERAL PURPOSE

Reference Standard

UL

Uzunluk

13.21mm

Kurşunsuz

Lead Free

Pozisyon Sayısı

10

Contact Resistance

10mOhm

Style

Board to Board or Cable

Sıra Sayısı

2

Number Of Conductors

ONE

Current Rating Amps

5.7A per Contact

Contact Finish Mating

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.195 4.95mm

Contact Materials

Phosphor Bronze

Fabrika Tedarik Süresi

3 Weeks

Parça Durumu

Active

Contact Length Post

0.100 2.54mm

Contact Shape

Square

Number Of Positions Loaded

All

Fastening Type

Push-Pull

Radyasyon Dayanımı

No
