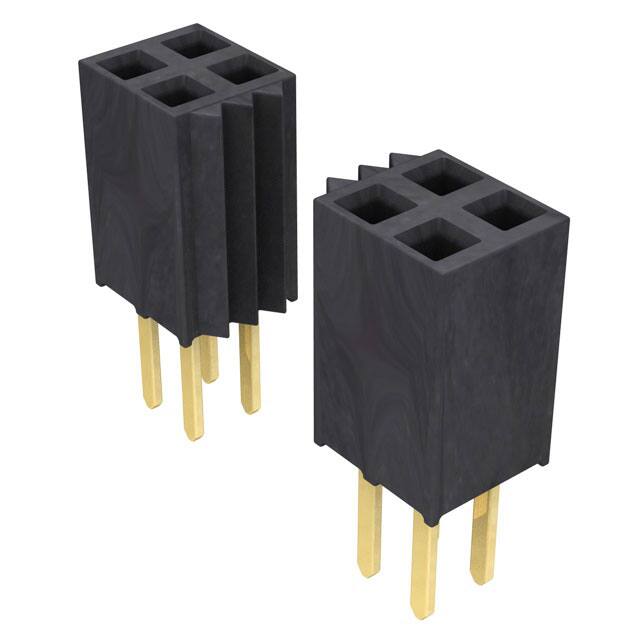

SSW-105-02-G-D

Specifications

Pitch Mating

0.100 2.54mm

Option

GENERAL PURPOSE

Body Breadth

0.195 inch

Contact Gender

FEMALE

Pcb Contact Pattern

RECTANGULAR

Depth

4.95mm

Filter Feature

NO

Lead Pitch

2.54mm

Housing Material

Polymer

Contact Type

Forked

Kurşunsuz Kodu

yes

Voltage Rated Ac

465V

Orientation

Straight

Çalışma Sıcaklığı

-55°C~125°C

Number Of Pcb Rows

2

Iec Conformance

NO

Voltage Rated Dc

655V

Housing Color

Black

Nem Hassasiyeti (MSL)

Not Applicable

Contact Materials

Phosphor Bronze

Insulation Height

0.335 8.51mm

Parça Durumu

Active

Number Of Conductors

ONE

Current Rating Amps

5.7A per Contact

Contact Finish Mating

Gold

Sıra Sayısı

2

Montaj

Through Hole

Reference Standard

UL

Kurşunsuz

Lead Free

Uzunluk

13.21mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pozisyon Sayısı

10

Contact Finish Thickness Post

3.00μin 0.076μm

Contact Resistance

10mOhm

Style

Board to Board or Cable

Mating Contact Pitch

0.1 inch

Mixed Contacts

NO

Connector Type

Receptacle

Fastening Type

Push-Pull

Radyasyon Dayanımı

No
