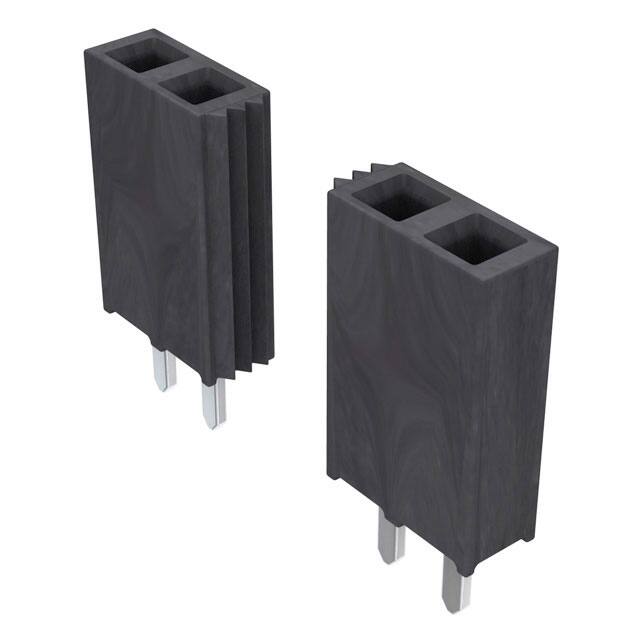

SSW-105-01-T-S

Specifications

Number Of Positions Loaded

All

Contact Shape

Square

Contact Length Post

0.104 2.64mm

Mixed Contacts

NO

Connector Type

Receptacle

Ul Flammability Code

94V-0

Radyasyon Dayanımı

No

Fastening Type

Push-Pull

Reach Svhc

No SVHC

Seri

SSW

JESD-609 Kodu

e3

Montaj Tipi

Through Hole

Reliability

COMMERCIAL

Din Conformance

NO

Yayın Yılı

2000

Max Voltage Rating Ac

550V

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Liquid Crystal Polymer (LCP)

Terminal

Solder

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Additional Feature

TIGER BUY CONTACT

Max Current Rating

6.9A

Mil Conformance

NO

Lead Pitch

2.54mm

Kurşunsuz Kodu

yes

Voltage Rated Ac

465V

Housing Material

Polymer

Contact Type

Forked

Çalışma Sıcaklığı

-55°C~105°C

Lead Length

2.64mm

Orientation

Vertical

Housing Color

Black

Voltage Rated Dc

655V

Iec Conformance

NO

Number Of Pcb Rows

1

Option

GENERAL PURPOSE

Pitch Mating

0.100 2.54mm

Filter Feature

NO

Depth

2.41mm
