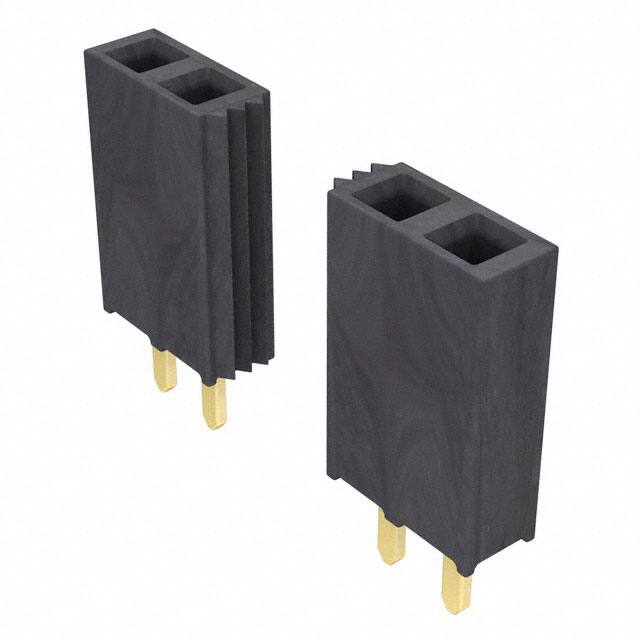

SSW-105-01-G-S

Specifications

Contact Length Post

0.104 2.64mm

Contact Shape

Square

Number Of Positions Loaded

All

Ul Flammability Code

94V-0

Radyasyon Dayanımı

No

Fastening Type

Push-Pull

Plating Thickness

20μin

Mixed Contacts

NO

Connector Type

Receptacle

Reliability

COMMERCIAL

Max Voltage Rating Ac

550V

Yayın Yılı

2000

Din Conformance

NO

Seri

SSW

Reach Svhc

No SVHC

JESD-609 Kodu

e4

Montaj Tipi

Through Hole

Additional Feature

TIGER BUY CONTACT

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

20.0μin 0.51μm

Ambalaj

Bulk

Mil Conformance

NO

Max Current Rating

6.9A

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Insulation Materials

Liquid Crystal Polymer (LCP)

Lead Length

2.64mm

Orientation

Vertical

Çalışma Sıcaklığı

-55°C~125°C

Number Of Pcb Rows

1

Iec Conformance

NO

Housing Color

Black

Voltage Rated Dc

655V

Lead Pitch

2.54mm

Housing Material

Polymer

Contact Type

Forked

Kurşunsuz Kodu

yes

Voltage Rated Ac

465V

Contact Gender

FEMALE

Pcb Contact Pattern

RECTANGULAR
