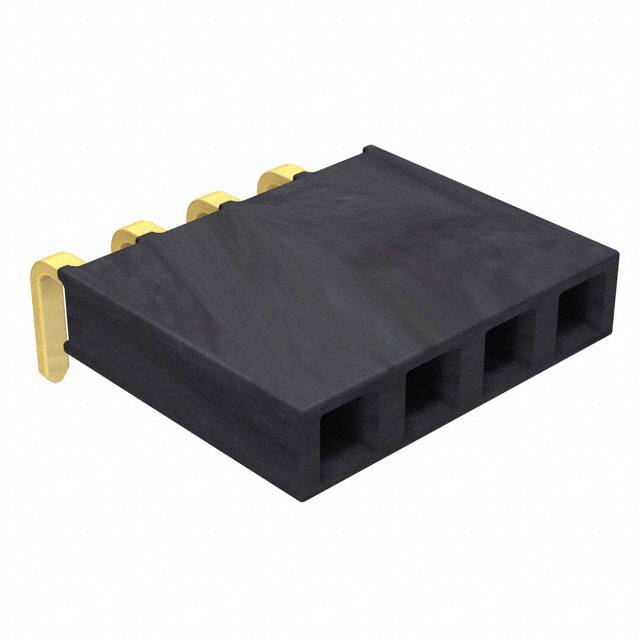

SSW-104-02-G-S-RA

Specifications

Number Of Pcb Rows

1

Ambalaj

Bulk

Montaj Tipi

Through Hole, Right Angle

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Positions Loaded

All

Montaj

Through Hole

Lead Pitch

2.54mm

Reference Standard

UL

Seri

SSW

Parça Durumu

Active

Kurşunsuz

Lead Free

Mixed Contacts

NO

Pozisyon Sayısı

4

Sıra Sayısı

1

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

Not Applicable

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

20.0μin 0.51μm

Max Voltage Rating Ac

550V

Connector Type

Receptacle

Number Of Conductors

ONE

Iec Conformance

NO

JESD-609 Kodu

e4

Orientation

Right Angle

Fastening Type

Push-Pull

Insulation Height

0.095 2.41mm

Body Breadth

0.095 inch

Filter Feature

NO

Pitch Mating

0.100 2.54mm

Contact Gender

FEMALE

Contact Finish Thickness Post

3.00μin 0.076μm

Reach Svhc

No SVHC

Contact Materials

Phosphor Bronze

Terminal

Solder

Din Conformance

NO

Additional Feature

TIGER BUY CONTACT

Lead Length

2.54mm

Kurşunsuz Kodu

yes
