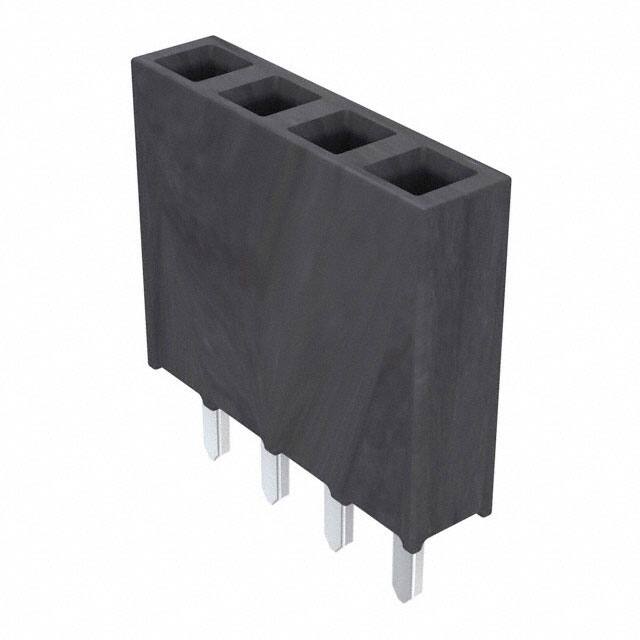

SSW-104-01-T-S

Specifications

Ambalaj

Bulk

Montaj Tipi

Through Hole

Number Of Pcb Rows

1

Number Of Positions Loaded

All

Montaj

Through Hole

Insulation Materials

Liquid Crystal Polymer (LCP)

Mixed Contacts

NO

Kurşunsuz

Lead Free

Parça Durumu

Active

Seri

SSW

Reference Standard

UL

Lead Pitch

2.54mm

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Sıra Sayısı

1

Pozisyon Sayısı

4

Number Of Conductors

ONE

Connector Type

Receptacle

Çalışma Sıcaklığı

-55°C~105°C

Max Voltage Rating Ac

550V

Mil Conformance

NO

Nem Hassasiyeti (MSL)

Not Applicable

Pitch Mating

0.100 2.54mm

Insulation Height

0.335 8.51mm

Body Breadth

0.095 inch

Filter Feature

NO

Fastening Type

Push-Pull

Orientation

Straight

Iec Conformance

NO

JESD-609 Kodu

e3

Reach Svhc

No SVHC

Contact Gender

FEMALE

Fabrika Tedarik Süresi

1 Weeks

Terminal

Solder

Contact Materials

Phosphor Bronze

Genişlik

2.41mm

Additional Feature

TIGER BUY CONTACT

Din Conformance

NO

Contact Resistance

10mOhm

Style

Board to Board or Cable
