Volume pricing
- 1+ pcs$1.03
- 10+ pcs$0.97
- 100+ pcs$0.92
- 500+ pcs$0.86
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

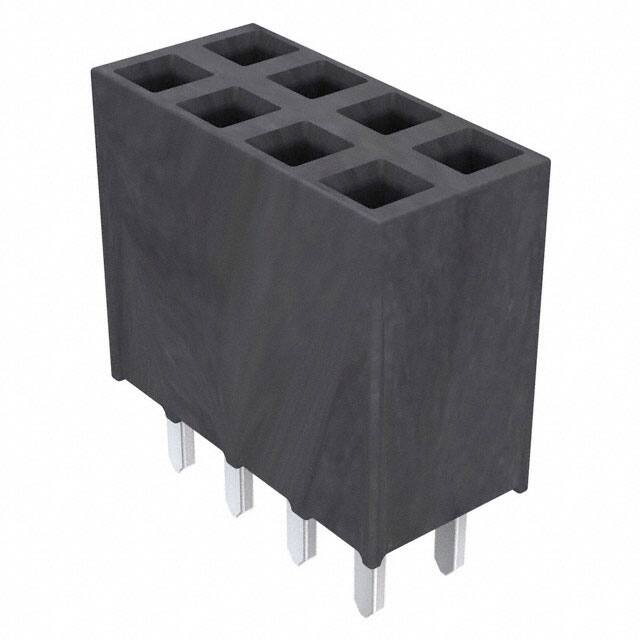

Specifications
- Contact Finish Mating
- Tin
- Contact Type
- Forked
- Uzunluk
- 10.67mm
- Row Spacing Mating
- 0.100 (2.54mm)
- Voltage Rated Ac
- 465V
- Contact Shape
- Square
- Contact Length Post
- 0.104 2.64mm
- Reliability
- COMMERCIAL
- Voltage Rated Dc
- 655V
- Yayın Yılı
- 2000
- Pcb Contact Pattern
- RECTANGULAR
- Housing Material
- Polymer
- Din Conformance
- NO
- Additional Feature
- TIGER BUY CONTACT
- Contact Materials
- Phosphor Bronze
- Genişlik
- 4.95mm
- Terminal
- Solder
- Depth
- 4.95mm
- RoHS Durumu
- ROHS3 Compliant
- Option
- GENERAL PURPOSE
- Max Current Rating
- 7.6A
- Housing Color
- Black
- Kurşunsuz Kodu
- yes
- Current Rating Amps
- 5.7A per Contact
- Style
- Board to Board or Cable
- Contact Resistance
- 10mOhm
- Lead Length
- 2.64mm
- Orientation
- Vertical
- Fastening Type
- Push-Pull
- Iec Conformance
- NO
- JESD-609 Kodu
- e3
- Filter Feature
- NO
- Body Breadth
- 0.195 inch
- Insulation Height
- 0.335 8.51mm
- Pitch Mating
- 0.100 2.54mm
- Mil Conformance
- NO
- Max Voltage Rating Ac
- 550V
- Çalışma Sıcaklığı
- -55°C~105°C
- Nem Hassasiyeti (MSL)
- Not Applicable
- Number Of Conductors
- ONE
