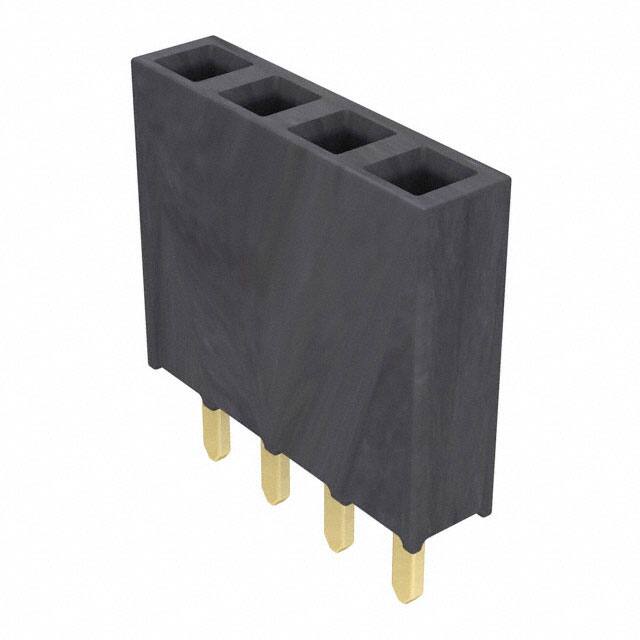

SSW-104-01-G-S

Specifications

Additional Feature

TIGER BUY CONTACT

Din Conformance

NO

Terminal

Solder

Contact Materials

Phosphor Bronze

RoHS Durumu

ROHS3 Compliant

Max Current Rating

7.6A

Option

GENERAL PURPOSE

Depth

2.41mm

Current Rating Amps

5.7A per Contact

Style

Board to Board or Cable

Contact Resistance

10mOhm

Housing Color

Black

Kurşunsuz Kodu

yes

Lead Length

2.64mm

Uzunluk

10.67mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Voltage Rated Ac

465V

Contact Shape

Square

Akım Değeri

6.9A

Contact Finish Mating

Gold

Contact Type

Forked

Voltage Rated Dc

655V

Yayın Yılı

2000

Reliability

COMMERCIAL

Contact Length Post

0.104 2.64mm

Plating Thickness

20μin

Housing Material

Polymer

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Montaj

Through Hole

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj Tipi

Through Hole

Ambalaj

Bulk

Number Of Pcb Rows

1

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Sıra Sayısı

1

Pozisyon Sayısı

4

Mixed Contacts

NO

Kurşunsuz

Lead Free
