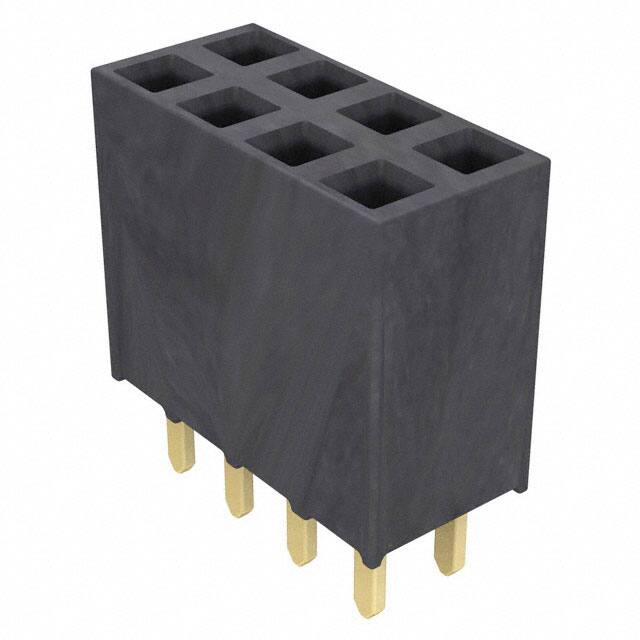

SSW-104-01-G-D

Specifications

Mating Contact Pitch

0.1 inch

Contact Gender

FEMALE

Fabrika Tedarik Süresi

0 Weeks

Reach Svhc

No SVHC

Contact Finish Thickness Post

3.00μin 0.076μm

Contact Finish Thickness Mating

20.0μin 0.51μm

Max Voltage Rating Ac

550V

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Nem Hassasiyeti (MSL)

Not Applicable

Number Of Conductors

ONE

Connector Type

Receptacle

Fastening Type

Push-Pull

Orientation

Vertical

JESD-609 Kodu

e4

Iec Conformance

NO

Pitch Mating

0.100 2.54mm

Filter Feature

NO

Body Breadth

0.195 inch

Insulation Height

0.335 8.51mm

Reference Standard

UL

Lead Pitch

2.54mm

Mixed Contacts

NO

Kurşunsuz

Lead Free

Parça Durumu

Active

Seri

SSW

Sıra Sayısı

2

Pozisyon Sayısı

8

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Number Of Pcb Rows

2

Ambalaj

Bulk

Montaj Tipi

Through Hole

Montaj

Through Hole

Number Of Positions Loaded

All

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Housing Material

Polymer

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL
