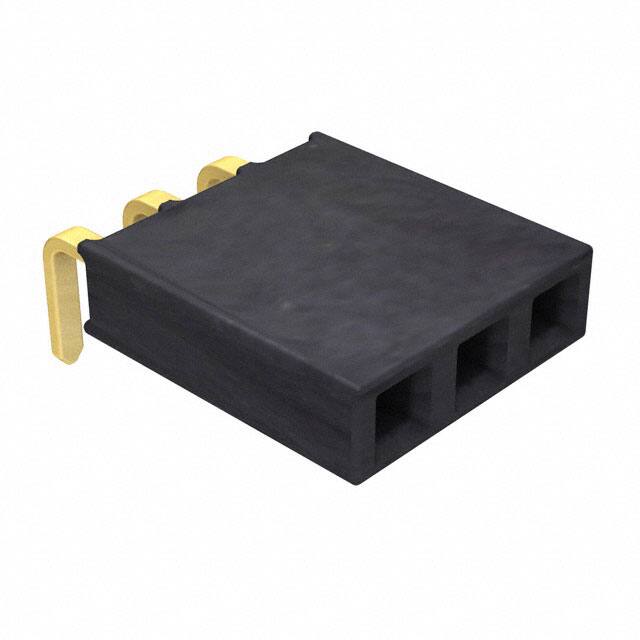

SSW-103-02-G-S-RA

Specifications

Insulation Height

0.095 2.41mm

Body Breadth

0.095 inch

Filter Feature

NO

Pitch Mating

0.100 2.54mm

Orientation

Right Angle

Fastening Type

Push-Pull

Iec Conformance

NO

JESD-609 Kodu

e4

Number Of Conductors

ONE

Connector Type

Receptacle

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

20.0μin 0.51μm

Max Voltage Rating Ac

550V

Nem Hassasiyeti (MSL)

Not Applicable

Reach Svhc

No SVHC

Contact Finish Thickness Post

3.00μin 0.076μm

Contact Gender

FEMALE

Fabrika Tedarik Süresi

5 Weeks

Number Of Positions Loaded

All

Montaj

Through Hole

Insulation Materials

Liquid Crystal Polymer (LCP)

Ul Flammability Code

94V-0

Montaj Tipi

Through Hole, Right Angle

Ambalaj

Bulk

Number Of Pcb Rows

1

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Sıra Sayısı

1

Pozisyon Sayısı

3

Kurşunsuz

Lead Free

Mixed Contacts

NO

Seri

SSW

Parça Durumu

Active

Reference Standard

UL, CSA

Lead Pitch

2.54mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Uzunluk

8.13mm

Akım Değeri

6.9A

Contact Shape

Square
