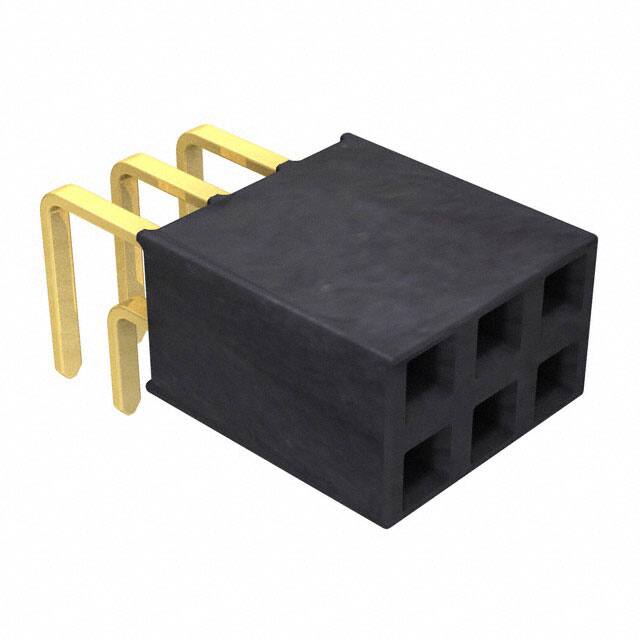

SSW-103-02-G-D-RA

Specifications

Nem Hassasiyeti (MSL)

Not Applicable

Max Voltage Rating Ac

550V

Contact Finish Thickness Mating

20.0μin 0.51μm

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Connector Type

Receptacle

Number Of Conductors

ONE

JESD-609 Kodu

e4

Iec Conformance

NO

Fastening Type

Push-Pull

Orientation

Right Angle

Pitch Mating

0.100 2.54mm

Body Breadth

0.195 inch

Insulation Height

0.195 4.95mm

Filter Feature

NO

Mating Contact Pitch

0.1 inch

Fabrika Tedarik Süresi

1 Weeks

Contact Gender

FEMALE

Contact Finish Thickness Post

3.00μin 0.076μm

Reach Svhc

No SVHC

Number Of Pcb Rows

2

Montaj Tipi

Through Hole, Right Angle

Ambalaj

Bulk

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj

Through Hole

Number Of Positions Loaded

All

Lead Pitch

2.54mm

Reference Standard

UL

Parça Durumu

Active

Seri

SSW

Mixed Contacts

NO

Kurşunsuz

Lead Free

Pozisyon Sayısı

6

Sıra Sayısı

2

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Contact Length Post

0.100 2.54mm

Yayın Yılı

2000
