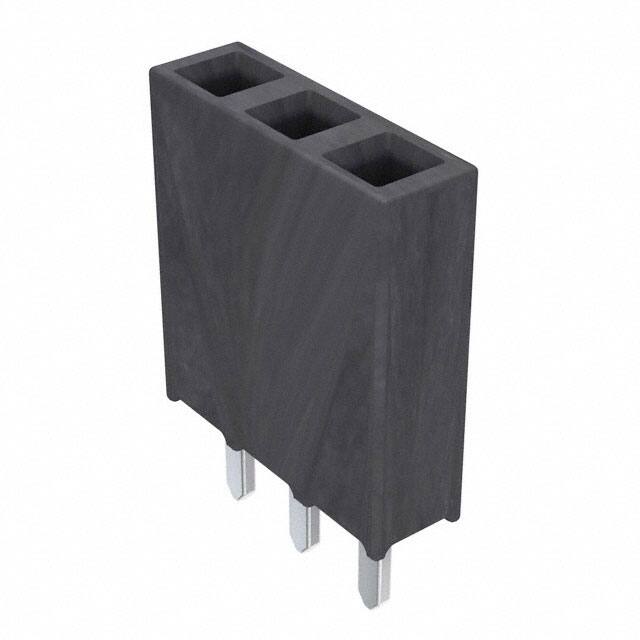

SSW-103-01-T-S

Specifications

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Sıra Sayısı

1

Pozisyon Sayısı

3

Mixed Contacts

NO

Kurşunsuz

Lead Free

Parça Durumu

Active

Seri

SSW

Reference Standard

UL

Lead Pitch

2.54mm

Montaj

Through Hole

Number Of Positions Loaded

All

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj Tipi

Through Hole

Ambalaj

Bulk

Number Of Pcb Rows

1

Reach Svhc

No SVHC

Contact Gender

FEMALE

Fabrika Tedarik Süresi

0 Weeks

Yükseklik

8.51mm

Pitch Mating

0.100 2.54mm

Insulation Height

0.335 8.51mm

Body Breadth

0.095 inch

Filter Feature

NO

Fastening Type

Push-Pull

Orientation

Straight

Iec Conformance

NO

JESD-609 Kodu

e3

Number Of Conductors

ONE

Connector Type

Receptacle

Max Voltage Rating Ac

550V

Çalışma Sıcaklığı

-55°C~105°C

Mil Conformance

NO

Nem Hassasiyeti (MSL)

Not Applicable

RoHS Durumu

ROHS3 Compliant

Max Current Rating

6.9A

Option

GENERAL PURPOSE

Depth

2.41mm

Contact Resistance

10mOhm
