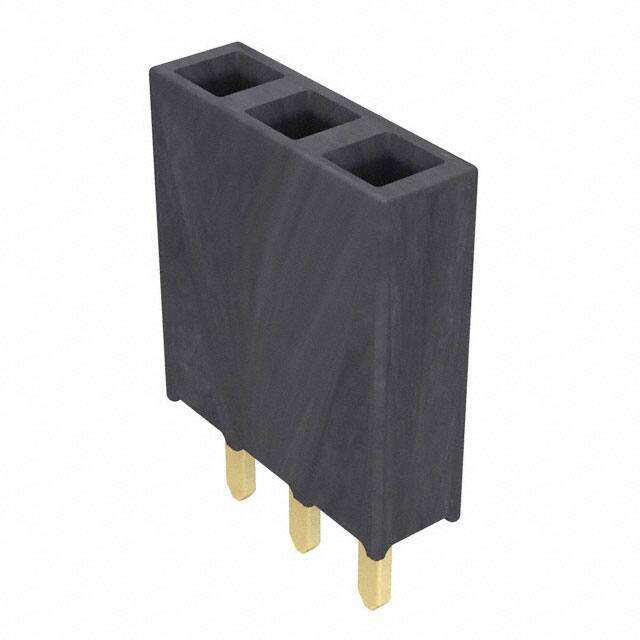

SSW-103-01-G-S

Specifications

Number Of Pcb Rows

1

Montaj Tipi

Through Hole

Ambalaj

Bulk

Montaj

Through Hole

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Ul Flammability Code

94V-0

Reference Standard

UL

Lead Pitch

2.54mm

Kurşunsuz

Lead Free

Mixed Contacts

NO

Seri

SSW

Parça Durumu

Active

Sıra Sayısı

1

Pozisyon Sayısı

3

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~125°C

Max Voltage Rating Ac

550V

Contact Finish Thickness Mating

20.0μin 0.51μm

Nem Hassasiyeti (MSL)

Not Applicable

Number Of Conductors

ONE

Connector Type

Receptacle

Orientation

Straight

Fastening Type

Push-Pull

JESD-609 Kodu

e4

Iec Conformance

NO

Insulation Height

0.335 8.51mm

Body Breadth

0.095 inch

Filter Feature

NO

Pitch Mating

0.100 2.54mm

Yükseklik

11.81mm

Contact Gender

FEMALE

Fabrika Tedarik Süresi

5 Weeks

Reach Svhc

No SVHC

Contact Finish Thickness Post

3.00μin 0.076μm

Contact Materials

Phosphor Bronze

Terminal

Solder

Din Conformance

NO
