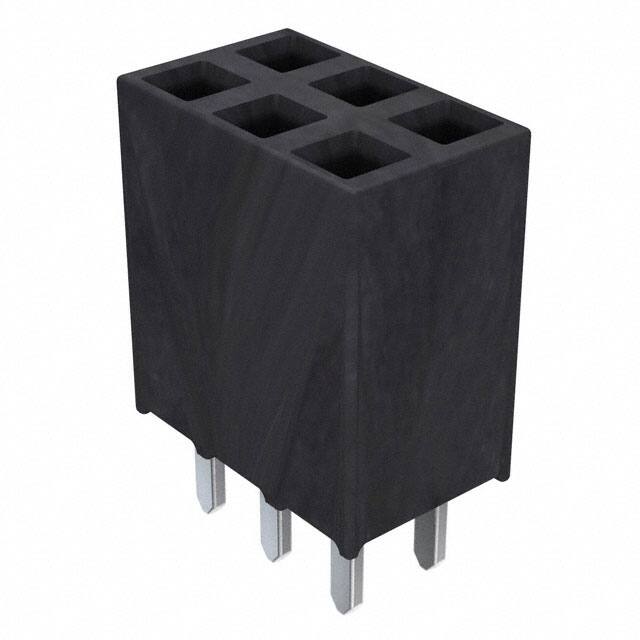

SSW-103-01-F-D

Specifications

Number Of Pcb Rows

2

Ambalaj

Bulk

Montaj Tipi

Through Hole

Number Of Positions Loaded

All

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Reference Standard

UL

Lead Pitch

2.54mm

Mixed Contacts

NO

Kurşunsuz

Lead Free

Parça Durumu

Active

Seri

SSW

Sıra Sayısı

2

Pozisyon Sayısı

6

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

3.00μin 0.076μm

Max Voltage Rating Ac

550V

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Number Of Conductors

ONE

Connector Type

Receptacle

Fastening Type

Push-Pull

Orientation

Vertical

JESD-609 Kodu

e3

Iec Conformance

NO

Pitch Mating

0.100 2.54mm

Filter Feature

NO

Body Breadth

0.195 inch

Insulation Height

0.335 8.51mm

Mating Contact Pitch

0.1 inch

Contact Gender

FEMALE

Fabrika Tedarik Süresi

3 Weeks

Contact Materials

Phosphor Bronze

Terminal

Solder

Din Conformance

NO

Additional Feature

TIGER BUY CONTACT

Style

Board to Board or Cable
