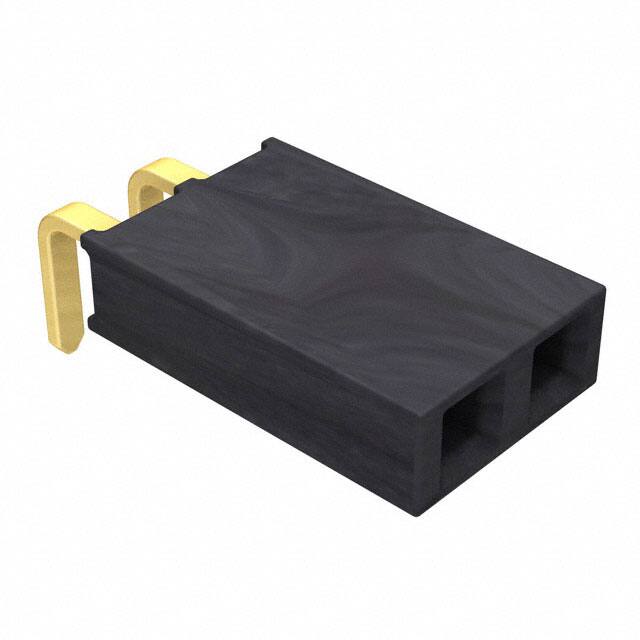

SSW-102-02-G-S-RA

Specifications

Din Conformance

NO

Additional Feature

TIGER BUY CONTACT

Contact Materials

Phosphor Bronze

Terminal

Solder

Depth

10.03mm

Max Current Rating

6.9A

Option

GENERAL PURPOSE

RoHS Durumu

ROHS3 Compliant

Lead Length

2.54mm

Current Rating Amps

5.7A per Contact

Style

Board to Board or Cable

Contact Resistance

10mOhm

Kurşunsuz Kodu

yes

Housing Color

Black

Contact Type

Forked

Contact Finish Mating

Gold

Contact Shape

Square

Voltage Rated Ac

465V

Akım Değeri

6.9A

Uzunluk

5.59mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Reliability

COMMERCIAL

Contact Length Post

0.100 2.54mm

Yayın Yılı

2000

Voltage Rated Dc

655V

Housing Material

Polymer

Pcb Contact Pattern

RECTANGULAR

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj

Through Hole

Number Of Positions Loaded

All

Number Of Pcb Rows

1

Ambalaj

Bulk

Montaj Tipi

Through Hole, Right Angle

Pozisyon Sayısı

2

Sıra Sayısı

1

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Lead Pitch

2.54mm

Reference Standard

UL
