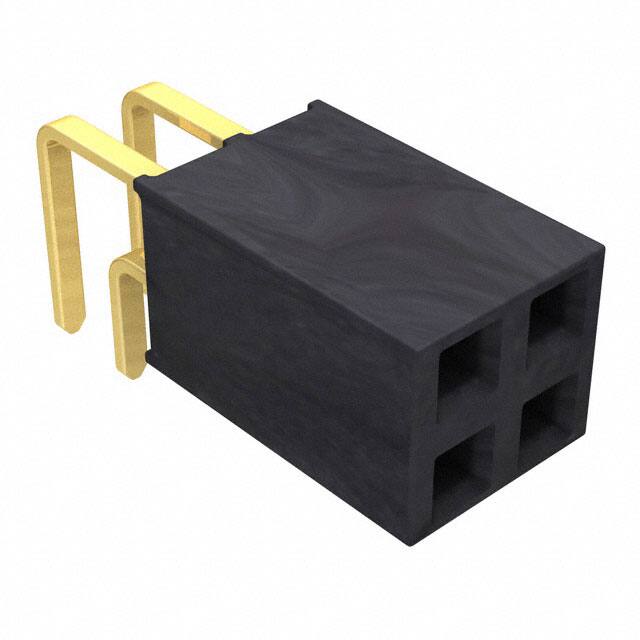

SSW-102-02-G-D-RA

Specifications

Contact Finish Thickness Post

3.00μin 0.076μm

Reach Svhc

No SVHC

Contact Gender

FEMALE

Yükseklik

5.08mm

Mating Contact Pitch

0.1 inch

Pitch Mating

0.100 2.54mm

Insulation Height

0.195 4.95mm

Body Breadth

0.195 inch

Filter Feature

NO

Iec Conformance

NO

JESD-609 Kodu

e4

Fastening Type

Push-Pull

Orientation

Right Angle

Connector Type

Receptacle

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

Not Applicable

Max Voltage Rating Ac

550V

Contact Finish Thickness Mating

20.0μin 0.51μm

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

4

Sıra Sayısı

2

Parça Durumu

Active

Seri

SSW

Mixed Contacts

NO

Kurşunsuz

Lead Free

Lead Pitch

2.54mm

Reference Standard

UL

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Positions Loaded

All

Montaj

Through Hole

Montaj Tipi

Through Hole, Right Angle

Ambalaj

Bulk

Number Of Pcb Rows

2

Housing Material

Polymer

Pcb Contact Pattern

RECTANGULAR

Contact Shape

Square

Voltage Rated Ac

465V
