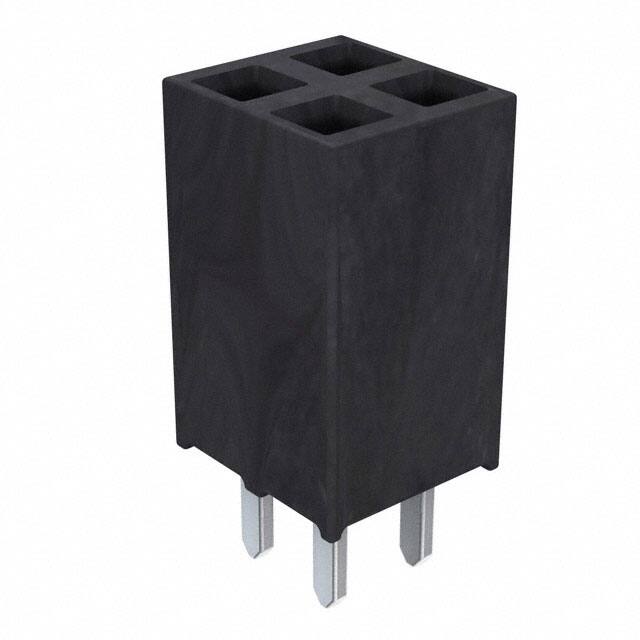

SSW-102-01-T-D

Specifications

Contact Length Post

0.104 2.64mm

Reliability

COMMERCIAL

Voltage Rated Dc

655V

Yayın Yılı

2000

Contact Finish Mating

Tin

Contact Type

Forked

Uzunluk

5.59mm

Row Spacing Mating

0.100 (2.54mm)

Voltage Rated Ac

465V

Contact Shape

Square

Pcb Contact Pattern

RECTANGULAR

Housing Material

Polymer

Contact Materials

Phosphor Bronze

Genişlik

4.95mm

Terminal

Solder

Din Conformance

NO

Additional Feature

TIGER BUY CONTACT

Housing Color

Black

Kurşunsuz Kodu

yes

Current Rating Amps

5.7A per Contact

Style

Board to Board or Cable

Contact Resistance

10mOhm

Lead Length

2.64mm

Depth

4.95mm

RoHS Durumu

ROHS3 Compliant

Option

GENERAL PURPOSE

Max Current Rating

6.9A

Mil Conformance

NO

Max Voltage Rating Ac

550V

Çalışma Sıcaklığı

-55°C~105°C

Nem Hassasiyeti (MSL)

Not Applicable

Number Of Conductors

ONE

Connector Type

Receptacle

Orientation

Straight

Fastening Type

Push-Pull

Iec Conformance

NO

JESD-609 Kodu

e3

Insulation Height

0.335 8.51mm

Body Breadth

0.195 inch

Filter Feature

NO
