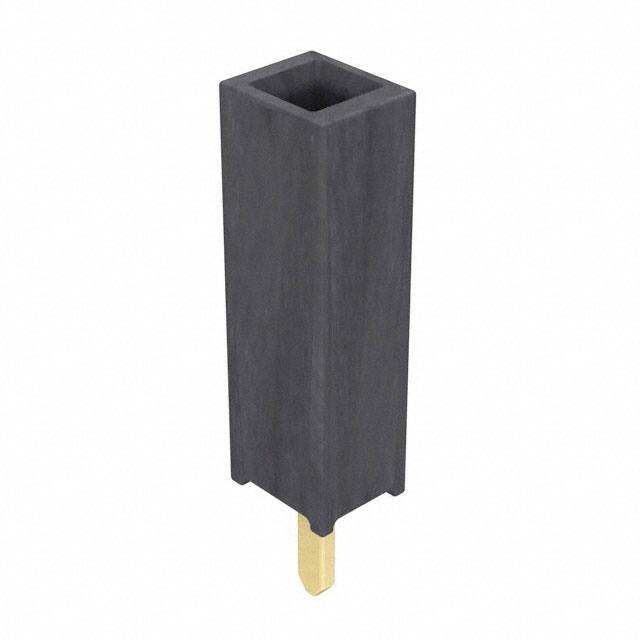

SSW-101-01-G-D

Specifications

Iec Conformance

NO

JESD-609 Kodu

e4

Orientation

Straight

Fastening Type

Push-Pull

Insulation Height

0.335 8.51mm

Body Breadth

0.195 inch

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Max Voltage Rating Ac

550V

Contact Finish Thickness Mating

20.0μin 0.51μm

Çalışma Sıcaklığı

-55°C~125°C

Connector Type

Receptacle

Number Of Conductors

ONE

Fabrika Tedarik Süresi

3 Weeks

Contact Gender

FEMALE

Contact Finish Thickness Post

3.00μin 0.076μm

Reach Svhc

No SVHC

Mating Contact Pitch

0.1 inch

Insulation Materials

Liquid Crystal Polymer (LCP)

Ul Flammability Code

94V-0

Montaj

Through Hole

Number Of Positions Loaded

All

Number Of Pcb Rows

2

Montaj Tipi

Through Hole

Ambalaj

Bulk

Pozisyon Sayısı

2

Sıra Sayısı

2

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Lead Pitch

2.54mm

Reference Standard

UL

Seri

SSW

Parça Durumu

Active

Kurşunsuz

Lead Free

Mixed Contacts

NO

Contact Type

Forked

Contact Finish Mating

Gold

Contact Shape

Square

Voltage Rated Ac

465V
