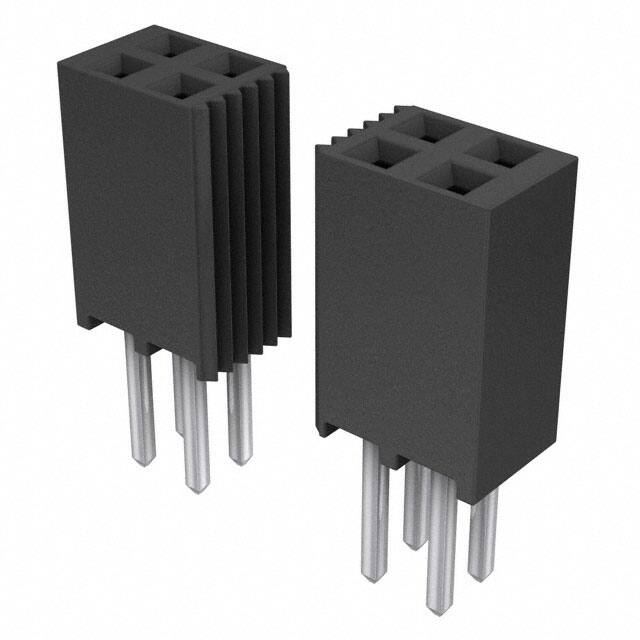

SSQ-140-02-S-D

Specifications

Insertion Forcemax

1.668 N

Din Conformance

NO

Mating Contact Pitch

0.1 inch

Çalışma Sıcaklığı

-55°C~125°C

Filter Feature

NO

Pitch Mating

0.100 2.54mm

Connector Type

Receptacle

Insulation Height

0.335 8.51mm

Seri

SSQ

Style

Board to Board or Cable

Kurşunsuz Kodu

yes

Montaj Tipi

Through Hole

Parça Durumu

Active

Contact Type

Forked

Orientation

Straight

Genişlik

4.95mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Housing Material

Polymer

Number Of Conductors

ONE

Mil Conformance

NO

Contact Shape

Square

Mixed Contacts

NO

HTS Kodu

8536.69.40.40

Number Of Pcb Rows

2

Plating Thickness

30μin

Fastening Type

Push-Pull

Withdrawl Forcemin

1.39 N

Max Current Rating

7.6A

Additional Feature

TIGER BUY CONTACT

Contact Length Post

0.194 4.93mm

Nominal Gerilim

550VAC

Radyasyon Dayanımı

No

Nem Hassasiyeti (MSL)

Not Applicable

JESD-609 Kodu

e3

Housing Color

Black

Yayın Yılı

2009

Depth

4.95mm

Max Voltage Rating Ac

550V

Row Spacing Mating

0.100 (2.54mm)

Uzunluk

102.11mm
