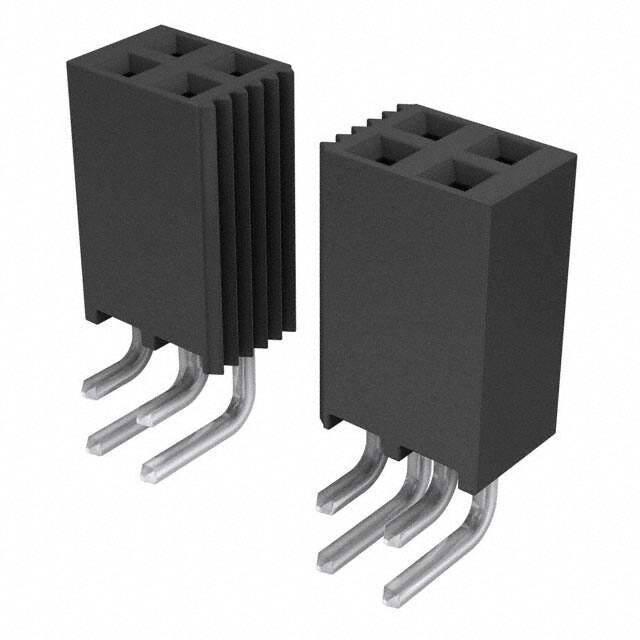

SSQ-137-02-T-D-RA

Specifications

Filter Feature

NO

Pitch Mating

0.100 2.54mm

Çalışma Sıcaklığı

-55°C~105°C

Mating Contact Pitch

0.1 inch

Din Conformance

NO

Lead Length

2.54mm

Yükseklik

4.95mm

Genişlik

8.51mm

Contact Type

Forked

Parça Durumu

Active

Montaj Tipi

Through Hole, Right Angle

Kurşunsuz Kodu

yes

Style

Board to Board or Cable

Seri

SSQ

Connector Type

Receptacle

Insulation Height

0.195 4.95mm

Fastening Type

Push-Pull

Number Of Pcb Rows

2

HTS Kodu

8536.69.40.40

Contact Shape

Square

Mixed Contacts

NO

Mil Conformance

NO

Number Of Conductors

ONE

Housing Material

Plastic

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Length Post

0.100 2.54mm

Voltage Rated Dc

655V

Yayın Yılı

2011

Housing Color

Black

Voltage Rated Ac

465V

JESD-609 Kodu

e3

Radyasyon Dayanımı

No

Nem Hassasiyeti (MSL)

Not Applicable

Current Rating Amps

6.3A per Contact

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Tin

Pcb Contact Pattern

RECTANGULAR

Uzunluk

94.5mm

Body Depth

0.335 inch

Row Spacing Mating

0.100 (2.54mm)
