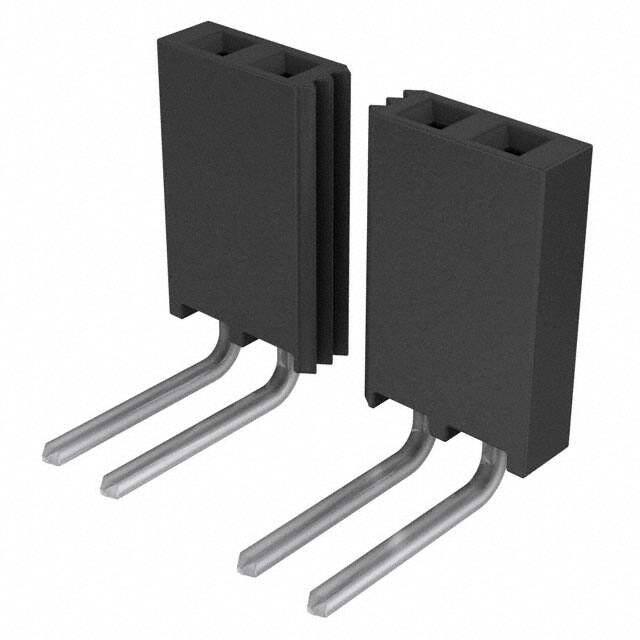

SSQ-130-03-T-S-RA

Specifications

Din Conformance

NO

Terminal Adımı

2.54mm

Çalışma Sıcaklığı

-55°C~105°C

Filter Feature

NO

Pitch Mating

0.100 2.54mm

Lead Length

7.62mm

Montaj Tipi

Through Hole, Right Angle

Contact Type

Forked

Parça Durumu

Discontinued

Yükseklik

2.41mm

Genişlik

8.51mm

Connector Type

Receptacle

Insulation Height

0.095 2.41mm

Seri

SSQ

Kurşunsuz Kodu

yes

Style

Board to Board or Cable

Number Of Pcb Rows

1

Plating Thickness

200μin

Fastening Type

Push-Pull

Housing Material

Plastic

Insulation Materials

Liquid Crystal Polymer (LCP)

Mil Conformance

NO

Number Of Conductors

ONE

Mixed Contacts

NO

Contact Shape

Square

HTS Kodu

8536.69.40.40

Contact Length Post

0.300 7.62mm

Yayın Yılı

2011

Housing Color

Black

Voltage Rated Dc

655V

Radyasyon Dayanımı

No

Voltage Rated Ac

465V

JESD-609 Kodu

e3

Pcb Contact Pattern

RECTANGULAR

Contact Finish Mating

Tin

Current Rating Amps

6.3A per Contact

Material Flammability Rating

UL94 V-0

Body Depth

0.335 inch

Uzunluk

76.7mm

Kurşunsuz

Lead Free
