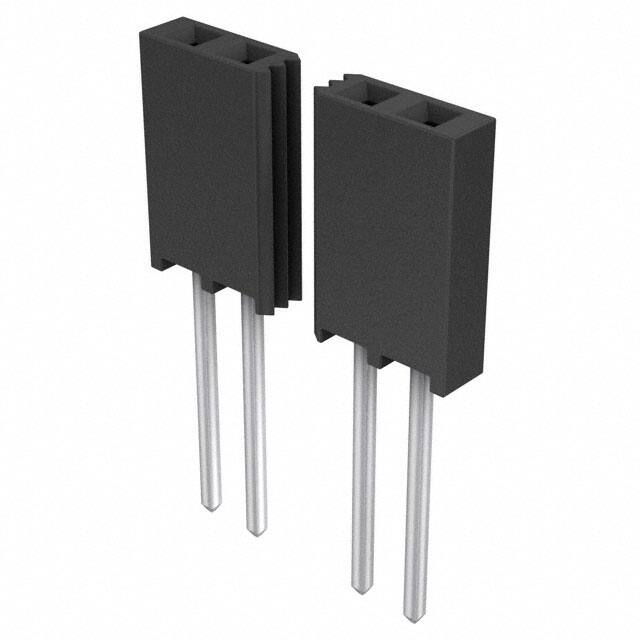

SSQ-120-03-F-S

Specifications

Insulation Height

0.335 8.51mm

Connector Type

Receptacle

Seri

SSQ

Contact Finish Post

Tin

Style

Board to Board or Cable

Kurşunsuz Kodu

yes

Montaj Tipi

Through Hole

Contact Type

Forked

Parça Durumu

Active

Fabrika Tedarik Süresi

3 Weeks

Contact Finish Mating

Gold

Current Rating Amps

6.3A per Contact

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Rated Ac

465V

JESD-609 Kodu

e3

Din Conformance

NO

Terminal Adımı

2.54mm

Yayın Yılı

2012

Çalışma Sıcaklığı

-55°C~125°C

Insulation Color

Black

Voltage Rated Dc

655V

Filter Feature

NO

Pitch Mating

0.100 2.54mm

Contact Gender

FEMALE

Additional Feature

TIGER BUY CONTACT

Contact Length Post

0.394 10.00mm

Iec Conformance

NO

RoHS Durumu

ROHS3 Compliant

Contact Materials

Phosphor Bronze

Ambalaj

Bulk

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Pozisyon Sayısı

20

Mil Conformance

NO

Contact Shape

Square

Mixed Contacts

NO

Option

GENERAL PURPOSE

Reach Svhc

No SVHC

Montaj

Through Hole
