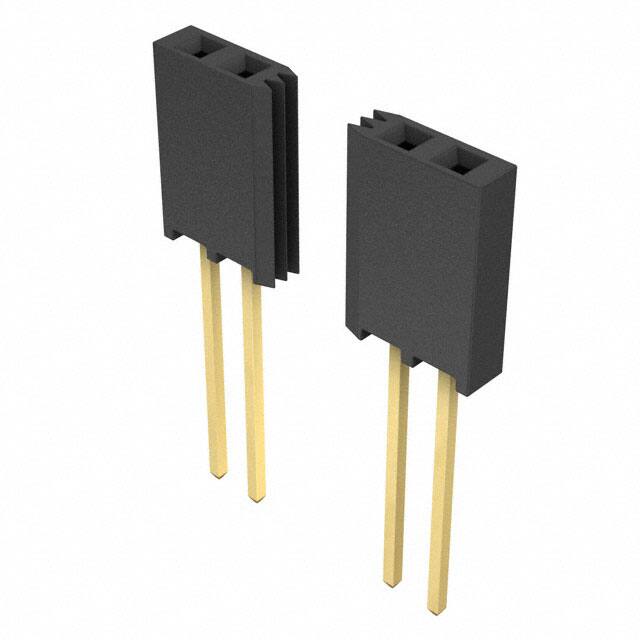

SSQ-108-04-G-S

Specifications

Mixed Contacts

NO

Contact Finish Thickness Post

3.00μin 0.076μm

Terminal

Solder

Contact Shape

Square

Din Conformance

NO

Current Rating Amps

6.3A per Contact

Montaj Tipi

Through Hole

Seri

SSQ

Option

GENERAL PURPOSE

Max Voltage Rating Ac

550V

Voltage Rated Ac

465V

Body Breadth

0.095 inch

Contact Resistance

10mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Style

Board to Board or Cable

Pcb Contact Pattern

RECTANGULAR

Filter Feature

NO

Yayın Yılı

2014

Ambalaj

Bulk

Fastening Type

Push-Pull

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Reliability

COMMERCIAL

Contact Materials

Phosphor Bronze

JESD-609 Kodu

e4

Insulation Color

Black

Insulation Materials

Liquid Crystal Polymer (LCP)

Pozisyon Sayısı

8

Depth

2.41mm

Contact Length Post

0.584 14.83mm

Contact Finish Thickness Mating

20.0μin 0.51μm

Sıra Sayısı

1

Number Of Positions Loaded

All

Housing Material

Polymer

Contact Type

Forked

Reference Standard

UL, CSA

Max Current Rating

7.6A

Material Flammability Rating

UL94 V-0

Pitch Mating

0.100 2.54mm
