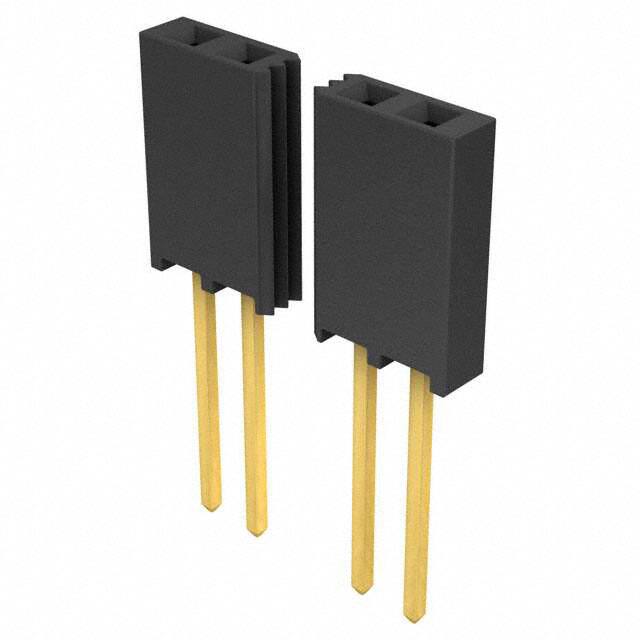

SSQ-105-03-G-S

Specifications

Pozisyon Sayısı

5

Insulation Materials

Liquid Crystal Polymer (LCP)

Genişlik

2.41mm

Reach Svhc

No SVHC

Depth

2.41mm

Contact Length Post

0.394 10.00mm

JESD-609 Kodu

e4

Housing Color

Black

Reference Standard

UL, CSA

Material Flammability Rating

UL94 V-0

Max Current Rating

7.6A

Housing Material

Polymer

Number Of Positions Loaded

All

Sıra Sayısı

1

Contact Finish Thickness Mating

20.0μin 0.51μm

Contact Type

Forked

Montaj

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

Plating Thickness

20μin

Number Of Pcb Rows

1

Contact Gender

FEMALE

Uzunluk

13.21mm

Pitch Mating

0.100 2.54mm

Voltage Rated Dc

655V

Mil Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Orientation

Straight

Connector Type

Receptacle

Radyasyon Dayanımı

No

Contact Finish Mating

Gold

Iec Conformance

NO

Insulation Height

0.335 8.51mm

Additional Feature

TIGER BUY CONTACT

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Number Of Conductors

ONE

Contact Shape

Square

Terminal

Solder

Din Conformance

NO

Mixed Contacts

NO
