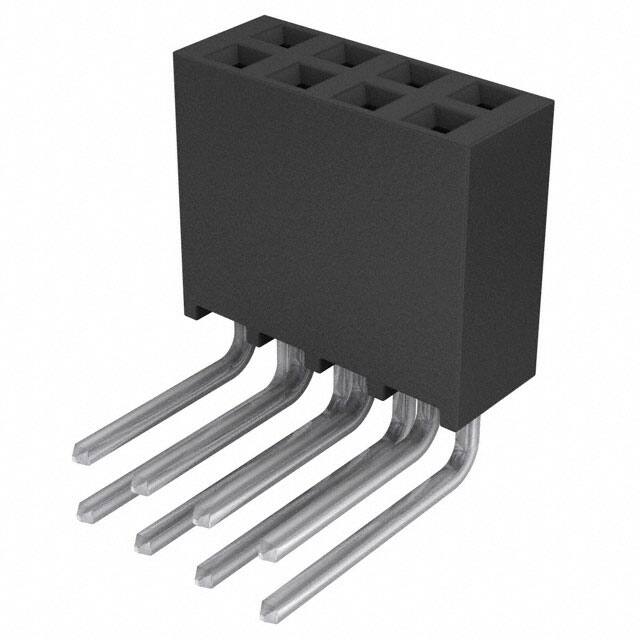

SSQ-104-03-T-D-RA

Specifications

Current Rating Amps

6.3A per Contact

Seri

SSQ

Montaj Tipi

Through Hole, Right Angle

Option

GENERAL PURPOSE

Voltage Rated Ac

465V

Body Depth

0.335 inch

Mixed Contacts

NO

Terminal

Solder

Contact Shape

Square

Din Conformance

NO

Row Spacing Mating

0.100 (2.54mm)

Yayın Yılı

2011

Fastening Type

Push-Pull

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Reliability

COMMERCIAL

Contact Materials

Phosphor Bronze

Body Breadth

0.195 inch

Contact Resistance

10mOhm

Parça Durumu

Discontinued

Pcb Contact Pattern

RECTANGULAR

Style

Board to Board or Cable

Filter Feature

NO

Sıra Sayısı

2

Number Of Positions Loaded

All

Housing Material

Plastic

Yükseklik

4.95mm

Contact Type

Forked

Reference Standard

UL, CSA

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Lead Length

7.62mm

Housing Color

Black

Mating Contact Pitch

0.1 inch

Genişlik

8.51mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Pozisyon Sayısı

8

Contact Length Post

0.300 7.62mm

ECCN Kodu

EAR99
