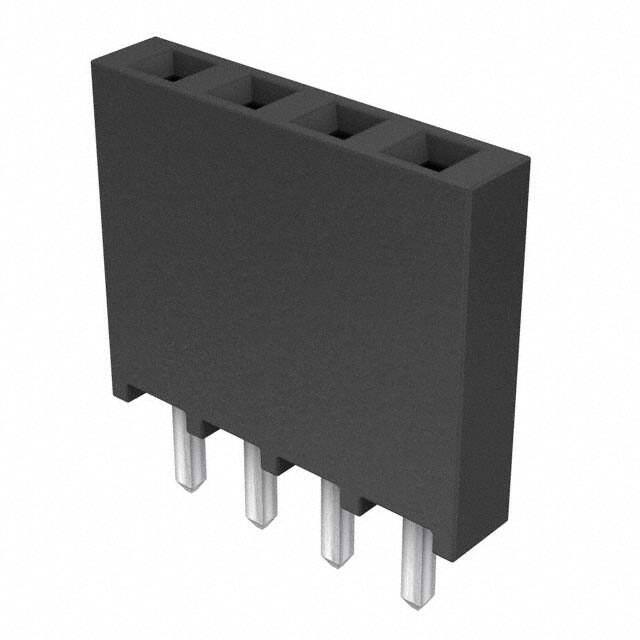

SSQ-104-01-T-S

Specifications

Number Of Conductors

ONE

Fabrika Tedarik Süresi

5 Weeks

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes

Additional Feature

TIGER BUY CONTACT

Insulation Height

0.335 8.51mm

Iec Conformance

NO

Contact Finish Mating

Tin

Radyasyon Dayanımı

No

Connector Type

Receptacle

Orientation

Straight

Mil Conformance

NO

Voltage Rated Dc

655V

Uzunluk

10.67mm

Pitch Mating

0.100 2.54mm

Plating Thickness

200μin

Number Of Pcb Rows

1

Çalışma Sıcaklığı

-55°C~105°C

Gender

Female

Montaj

Through Hole

Contact Type

Forked

Sıra Sayısı

1

Number Of Positions Loaded

All

Housing Material

Polymer

Max Current Rating

7.6A

Material Flammability Rating

UL94 V-0

Reference Standard

UL, CSA

Lead Length

2.64mm

Housing Color

Black

JESD-609 Kodu

e3

Contact Length Post

0.104 2.64mm

Depth

2.41mm

Genişlik

2.41mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Pozisyon Sayısı

4

Fastening Type

Push-Pull

Ambalaj

Bulk

Kurşunsuz

Lead Free

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2011
