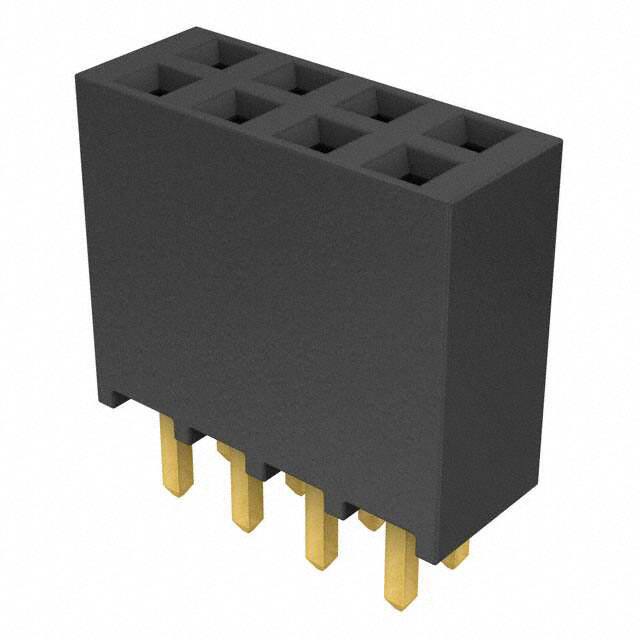

SSQ-104-01-G-D

Specifications

Voltage Rated Dc

655V

Mil Conformance

NO

Pitch Mating

0.100 2.54mm

Uzunluk

10.67mm

Contact Gender

FEMALE

Number Of Pcb Rows

2

Çalışma Sıcaklığı

-55°C~125°C

Montaj

Through Hole

Number Of Conductors

ONE

Kurşunsuz Kodu

yes

Insulation Height

0.335 8.51mm

Additional Feature

TIGER BUY CONTACT

Akım Değeri

7.6A

Iec Conformance

NO

Contact Finish Mating

Gold

Radyasyon Dayanımı

No

Orientation

Straight

Connector Type

Receptacle

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Lead Length

2.64mm

Mating Contact Pitch

0.1 inch

Housing Color

Black

JESD-609 Kodu

e4

Depth

4.95mm

Reach Svhc

No SVHC

Contact Length Post

0.104 2.64mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Pozisyon Sayısı

8

Contact Type

Forked

Contact Finish Thickness Mating

20.0μin 0.51μm

Sıra Sayısı

2

Number Of Positions Loaded

All

Housing Material

Polymer

Max Current Rating

7.6A

Material Flammability Rating

UL94 V-0

Reference Standard

UL, CSA

Nem Hassasiyeti (MSL)

Not Applicable

Body Breadth

0.195 inch

Contact Resistance

10mOhm

Filter Feature

NO
