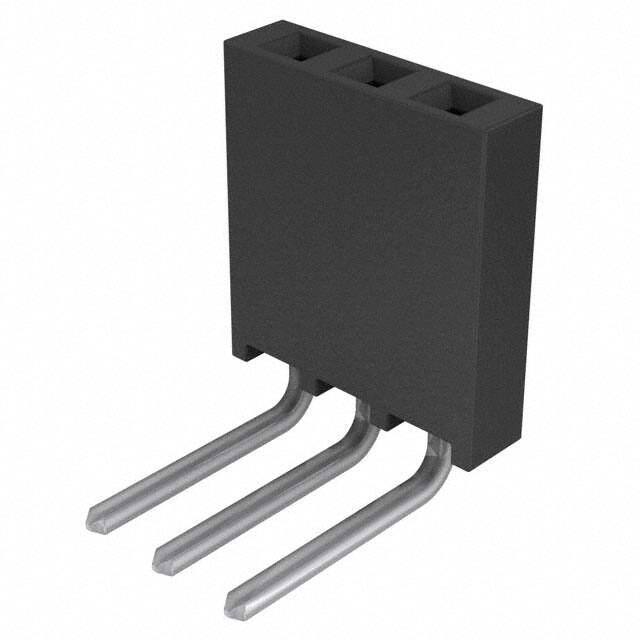

SSQ-103-03-T-S-RA

Specifications

Reference Standard

UL, CSA

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Housing Material

Plastic

Sıra Sayısı

1

Contact Type

Forked

Yükseklik

2.41mm

Pozisyon Sayısı

3

Insulation Materials

Liquid Crystal Polymer (LCP)

Genişlik

8.51mm

Contact Length Post

0.300 7.62mm

JESD-609 Kodu

e3

Housing Color

Black

Lead Length

7.62mm

Connector Type

Receptacle

Radyasyon Dayanımı

No

Contact Finish Mating

Tin

Iec Conformance

NO

Insulation Height

0.095 2.41mm

Additional Feature

TIGER BUY CONTACT

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Terminal Adımı

2.54mm

Number Of Conductors

ONE

Montaj

Through Hole

Gender

Female

Çalışma Sıcaklığı

-55°C~105°C

Number Of Pcb Rows

1

Plating Thickness

200μin

Pitch Mating

0.100 2.54mm

Uzunluk

8.13mm

Voltage Rated Dc

655V

Mil Conformance

NO

Option

GENERAL PURPOSE

Voltage Rated Ac

465V

Current Rating Amps

6.3A per Contact

Seri

SSQ

Montaj Tipi

Through Hole, Right Angle

Contact Shape

Square

Terminal

Solder
