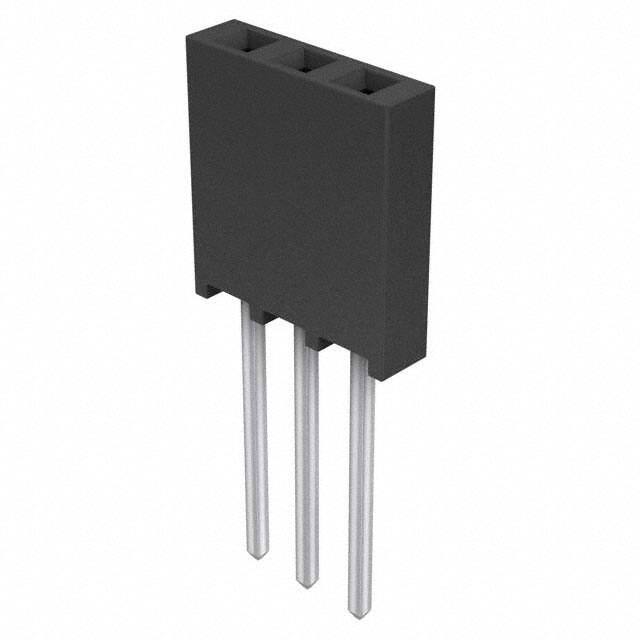

SSQ-103-03-T-S

Specifications

Iec Conformance

NO

Radyasyon Dayanımı

No

Contact Finish Mating

Tin

Connector Type

Receptacle

Number Of Conductors

ONE

Terminal Adımı

2.54mm

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Insulation Height

0.335 8.51mm

Additional Feature

TIGER BUY CONTACT

Gender

Female

Çalışma Sıcaklığı

-55°C~105°C

Montaj

Through Hole

Voltage Rated Dc

655V

Mil Conformance

NO

Pitch Mating

0.100 2.54mm

Uzunluk

8.13mm

Plating Thickness

200μin

Number Of Pcb Rows

1

Material Flammability Rating

UL94 V-0

Reference Standard

UL, CSA

Yükseklik

8.51mm

Contact Type

Forked

Sıra Sayısı

1

Housing Material

Plastic

Number Of Positions Loaded

All

Contact Length Post

0.394 10.00mm

Genişlik

2.41mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Pozisyon Sayısı

3

Housing Color

Black

JESD-609 Kodu

e3

Reliability

COMMERCIAL

Contact Materials

Phosphor Bronze

Ambalaj

Bulk

Fastening Type

Push-Pull

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Yayın Yılı

2011

Filter Feature

NO
