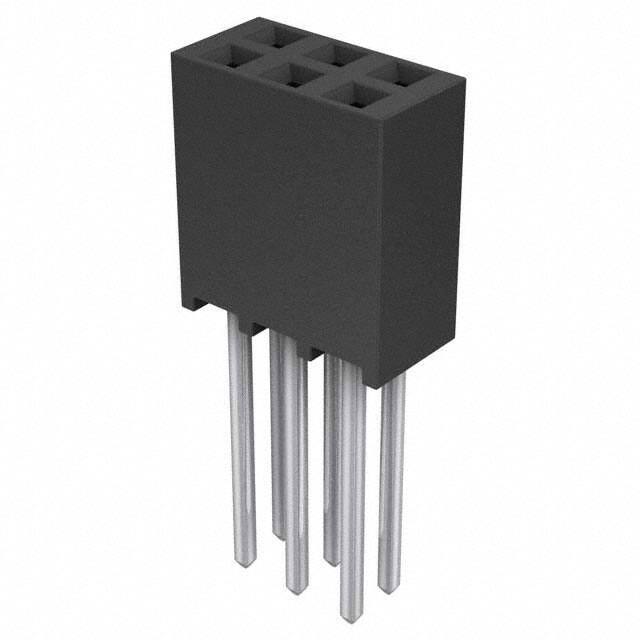

SSQ-103-03-T-D

Specifications

Max Current Rating

7.6A

Material Flammability Rating

UL94 V-0

Reference Standard

UL, CSA

Contact Type

Forked

Sıra Sayısı

2

Housing Material

Polymer

Number Of Positions Loaded

All

Depth

4.95mm

Contact Length Post

0.394 10.00mm

Genişlik

4.95mm

Pozisyon Sayısı

6

Insulation Materials

Liquid Crystal Polymer (LCP)

Mating Contact Pitch

0.1 inch

Housing Color

Black

JESD-609 Kodu

e3

Iec Conformance

NO

Radyasyon Dayanımı

No

Contact Finish Mating

Tin

Orientation

Straight

Connector Type

Receptacle

Number Of Conductors

ONE

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Insulation Height

0.335 8.51mm

Additional Feature

TIGER BUY CONTACT

Gender

Female

Çalışma Sıcaklığı

-55°C~105°C

Montaj

Through Hole

Voltage Rated Dc

655V

Mil Conformance

NO

Uzunluk

8.13mm

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

2

Max Voltage Rating Ac

550V

Voltage Rated Ac

465V

Option

GENERAL PURPOSE

Montaj Tipi

Through Hole

Seri

SSQ

Current Rating Amps

6.3A per Contact

Din Conformance

NO
