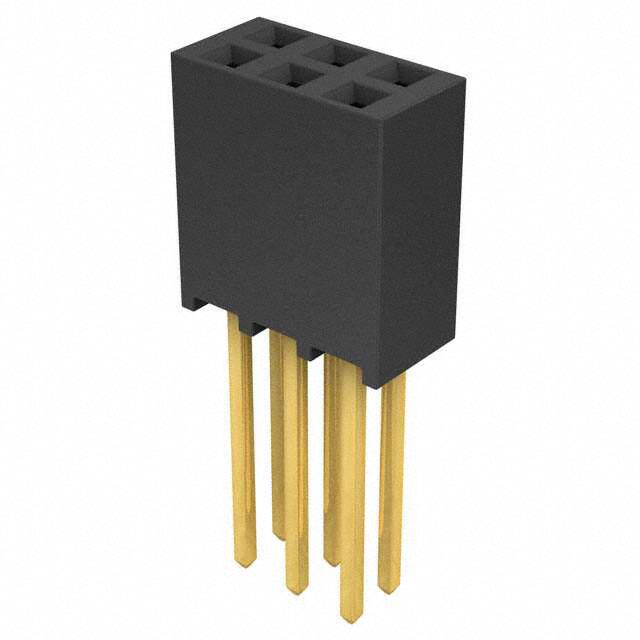

SSQ-103-03-G-D

Specifications

JESD-609 Kodu

e4

Mating Contact Pitch

0.1 inch

Housing Color

Black

Pozisyon Sayısı

6

Insulation Materials

Liquid Crystal Polymer (LCP)

Genişlik

4.95mm

Contact Length Post

0.394 10.00mm

Depth

4.95mm

Housing Material

Polymer

Number Of Positions Loaded

All

Contact Finish Thickness Mating

20.0μin 0.51μm

Sıra Sayısı

2

Contact Type

Forked

Reference Standard

UL, CSA

Material Flammability Rating

UL94 V-0

Max Current Rating

7.6A

Number Of Pcb Rows

2

Uzunluk

8.13mm

Pitch Mating

0.100 2.54mm

Mil Conformance

NO

Voltage Rated Dc

655V

Montaj

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

Gender

Female

Additional Feature

TIGER BUY CONTACT

Insulation Height

0.335 8.51mm

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes

Number Of Conductors

ONE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Receptacle

Orientation

Straight

Contact Finish Mating

Gold

Radyasyon Dayanımı

No

Iec Conformance

NO

Mixed Contacts

NO

Contact Finish Thickness Post

3.00μin 0.076μm

Contact Shape

Square

Terminal

Solder

Row Spacing Mating

0.100 (2.54mm)
