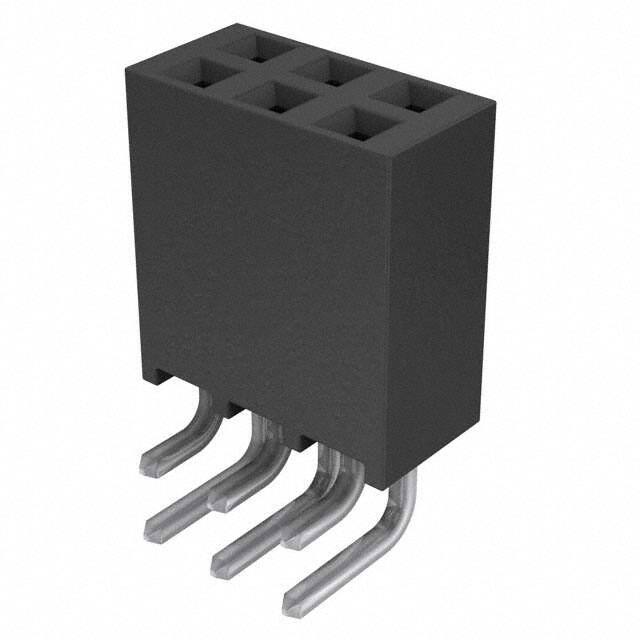

SSQ-103-02-T-D-RA

Specifications

Voltage Rated Ac

465V

Option

GENERAL PURPOSE

Montaj Tipi

Through Hole, Right Angle

Seri

SSQ

Current Rating Amps

6.3A per Contact

Row Spacing Mating

0.100 (2.54mm)

Din Conformance

NO

Contact Shape

Square

Terminal

Solder

Mixed Contacts

NO

Body Depth

0.335 inch

Contact Materials

Phosphor Bronze

Reliability

COMMERCIAL

Kurşunsuz

Lead Free

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Fastening Type

Push-Pull

Yayın Yılı

2011

Filter Feature

NO

Style

Board to Board or Cable

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Nem Hassasiyeti (MSL)

Not Applicable

Contact Resistance

10mOhm

Body Breadth

0.195 inch

Material Flammability Rating

UL94 V-0

Reference Standard

UL, CSA

Contact Type

Forked

Yükseklik

4.95mm

Housing Material

Plastic

Number Of Positions Loaded

All

Sıra Sayısı

2

Contact Length Post

0.100 2.54mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Pozisyon Sayısı

6

Genişlik

8.51mm

Mating Contact Pitch

0.1 inch

Housing Color

Black

Lead Length

2.54mm

JESD-609 Kodu

e3
