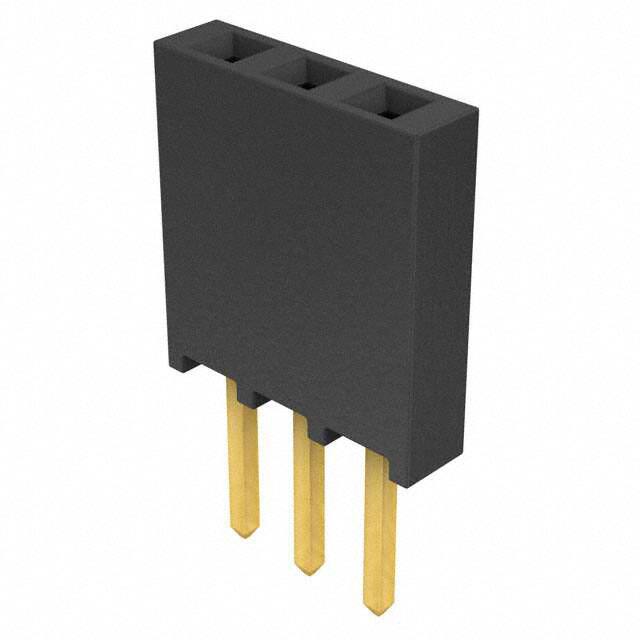

SSQ-103-02-G-S

Specifications

Gender

Female

Çalışma Sıcaklığı

-55°C~125°C

Montaj

Through Hole

Voltage Rated Dc

655V

Mil Conformance

NO

Pitch Mating

0.100 2.54mm

Uzunluk

8.13mm

Number Of Pcb Rows

1

Plating Thickness

20μin

Iec Conformance

NO

Radyasyon Dayanımı

No

Contact Finish Mating

Gold

Connector Type

Receptacle

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Conductors

ONE

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Terminal Adımı

2.54mm

Insulation Height

0.335 8.51mm

Additional Feature

TIGER BUY CONTACT

Contact Length Post

0.194 4.93mm

Genişlik

2.41mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Pozisyon Sayısı

3

Housing Color

Black

JESD-609 Kodu

e4

Material Flammability Rating

UL94 V-0

Reference Standard

UL, CSA

Yükseklik

8.51mm

Contact Type

Forked

Contact Finish Thickness Mating

20.0μin 0.51μm

Sıra Sayısı

1

Number Of Positions Loaded

All

Housing Material

Plastic

Filter Feature

NO

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Style

Board to Board or Cable

Nem Hassasiyeti (MSL)

Not Applicable

Body Breadth

0.095 inch
