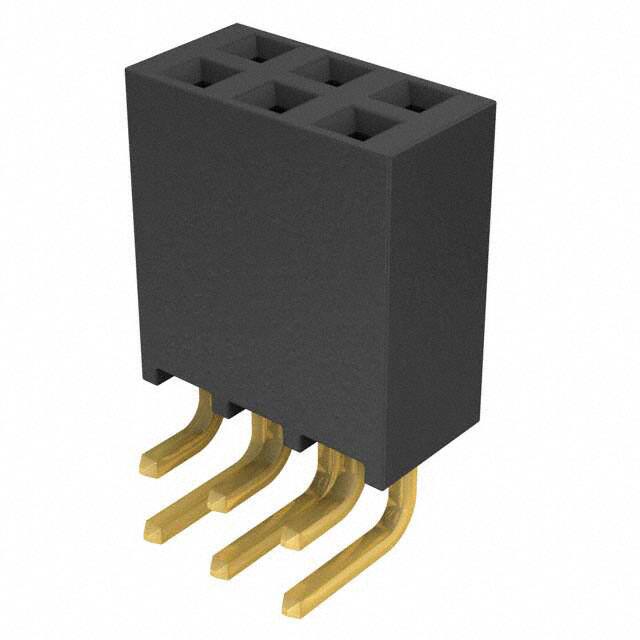

SSQ-103-02-G-D-RA

Specifications

Genişlik

8.51mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Pozisyon Sayısı

6

Contact Length Post

0.100 2.54mm

Depth

12.57mm

JESD-609 Kodu

e4

Lead Length

2.54mm

Housing Color

Black

Mating Contact Pitch

0.1 inch

Reference Standard

UL, CSA

Max Current Rating

7.6A

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

20.0μin 0.51μm

Sıra Sayısı

2

Number Of Positions Loaded

All

Housing Material

Polymer

Contact Type

Forked

Montaj

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

Gender

Female

Uzunluk

8.13mm

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

2

Mil Conformance

NO

Voltage Rated Dc

655V

Connector Type

Receptacle

Orientation

Right Angle

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Iec Conformance

NO

Contact Finish Mating

Gold

Radyasyon Dayanımı

No

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Additional Feature

TIGER BUY CONTACT

Insulation Height

0.195 4.95mm

Number Of Conductors

ONE

Terminal

Solder

Contact Shape

Square

Row Spacing Mating

0.100 (2.54mm)

Din Conformance

NO
