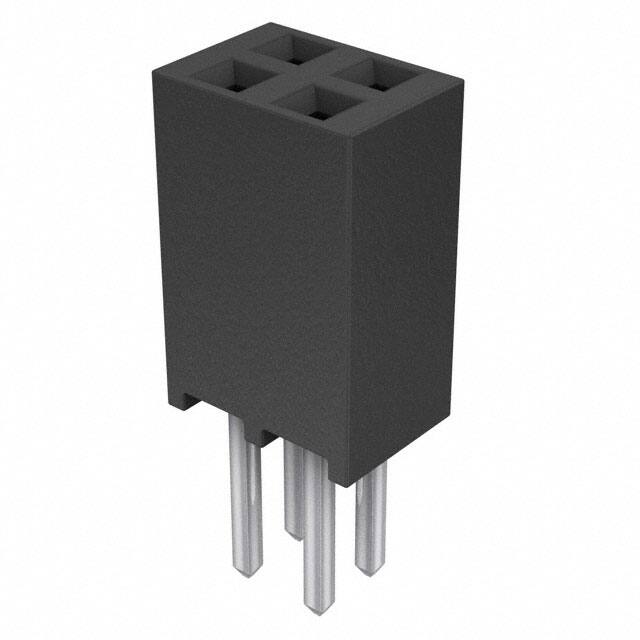

SSQ-102-02-S-D

Specifications

Number Of Conductors

ONE

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Insulation Height

0.335 8.51mm

Additional Feature

TIGER BUY CONTACT

Iec Conformance

NO

Radyasyon Dayanımı

No

Contact Finish Mating

Gold

Connector Type

Receptacle

Mil Conformance

NO

Pitch Mating

0.100 2.54mm

Uzunluk

5.59mm

Number Of Pcb Rows

2

Plating Thickness

30μin

Gender

Female

Çalışma Sıcaklığı

-55°C~125°C

Withdrawl Forcemin

1.39 N

Montaj

Through Hole

Yükseklik

8.51mm

Contact Type

Forked

Contact Finish Thickness Mating

30.0μin 0.76μm

Sıra Sayısı

2

Number Of Positions Loaded

All

Housing Material

Plastic

Material Flammability Rating

UL94 V-0

Reference Standard

UL, CSA

Mating Contact Pitch

0.1 inch

Housing Color

Black

JESD-609 Kodu

e3

Contact Finish Post

Tin

Contact Length Post

0.194 4.93mm

Genişlik

4.95mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Pozisyon Sayısı

4

Fastening Type

Push-Pull

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Yayın Yılı

2011

Reliability

COMMERCIAL
