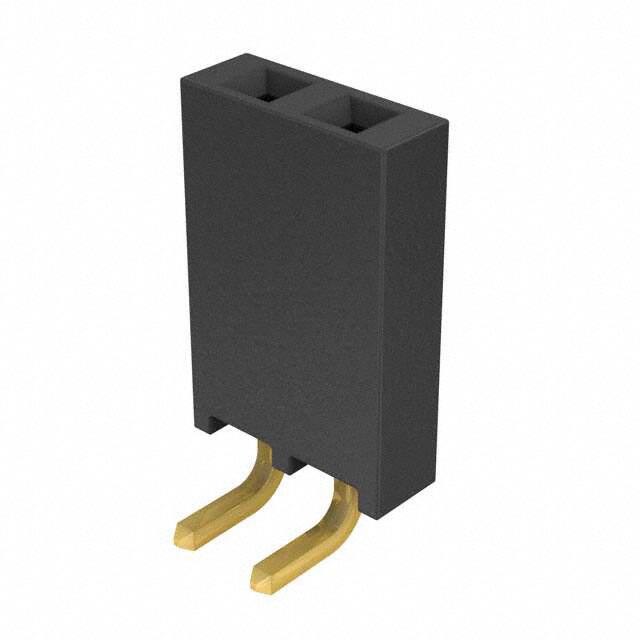

SSQ-102-02-G-S-RA

Specifications

Contact Finish Mating

Gold

Radyasyon Dayanımı

No

Iec Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Receptacle

Orientation

Right Angle

Number Of Conductors

ONE

Additional Feature

TIGER BUY CONTACT

Akım Değeri

7.6A

Insulation Height

0.095 2.41mm

Fabrika Tedarik Süresi

5 Weeks

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-55°C~125°C

Montaj

Through Hole

Mil Conformance

NO

Voltage Rated Dc

655V

Number Of Pcb Rows

1

Pitch Mating

0.100 2.54mm

Uzunluk

5.59mm

Contact Gender

FEMALE

Material Flammability Rating

UL94 V-0

Max Current Rating

7.6A

Reference Standard

UL, CSA

Contact Type

Forked

Number Of Positions Loaded

All

Housing Material

Polymer

Contact Finish Thickness Mating

20.0μin 0.51μm

Sıra Sayısı

1

Contact Length Post

0.100 2.54mm

Depth

10.03mm

Reach Svhc

No SVHC

Insulation Materials

Liquid Crystal Polymer (LCP)

Pozisyon Sayısı

2

Housing Color

Black

Lead Length

2.54mm

JESD-609 Kodu

e4

Contact Materials

Phosphor Bronze

Reliability

COMMERCIAL

Kurşunsuz

Lead Free
