Volume pricing
- 1+ pcs$8.38
- 10+ pcs$7.91
- 100+ pcs$7.46
- 500+ pcs$7.04
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

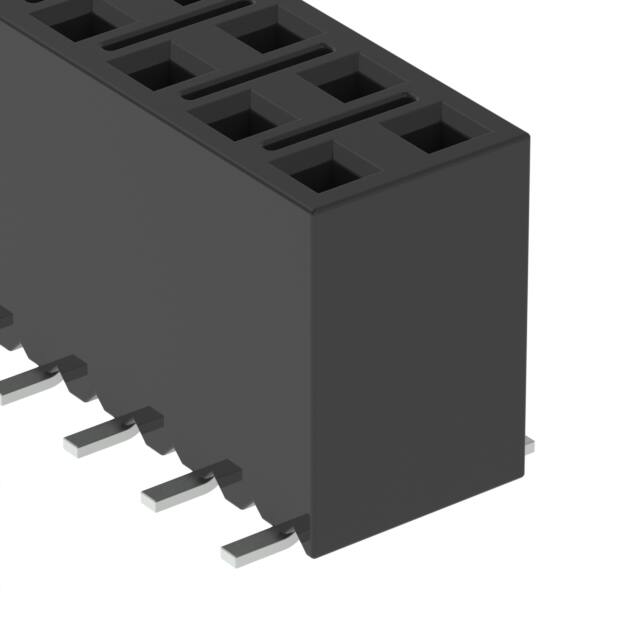

Specifications
- Orientation
- Straight
- Din Conformance
- NO
- Fabrika Tedarik Süresi
- 2 Weeks
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Contact Finish Post
- Tin
- Montaj
- Surface Mount
- JESD-609 Kodu
- e3
- Yayın Yılı
- 2000
- Reference Standard
- UL, CSA
- Gender
- Female
- Ambalaj
- Tube
- Çalışma Sıcaklığı
- -55°C~125°C
- Mating Contact Pitch
- 0.1 inch
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- RoHS Durumu
- ROHS3 Compliant
- Kurşunsuz
- Lead Free
- Sıra Sayısı
- 2
- Number Of Pcb Rows
- 2
- Ul Flammability Code
- 94V-0
- Kurşunsuz Kodu
- yes
- Style
- Board to Board or Cable
- Iec Conformance
- NO
- Contact Finish Mating
- Gold
- Pozisyon Sayısı
- 50
- Mil Conformance
- NO
- Reliability
- COMMERCIAL
- Nominal Gerilim
- 405VAC 572VDC
- Max Current Rating
- 6.9A
- Housing Material
- Polymer
- Additional Feature
- E.L.P., TIGER CLAW
- Depth
- 5.08mm
- Number Of Conductors
- ONE
- Number Of Positions Loaded
- All
- Contact Resistance
- 10mOhm
- Current Rating Amps
- 5.2A per Contact
- Withdrawl Forcemin
- .556 N
- Max Voltage Rating Ac
- 475V
- Uzunluk
- 63.5mm
- Insulation Height
- 0.290 7.37mm
- Contact Shape
- Square
