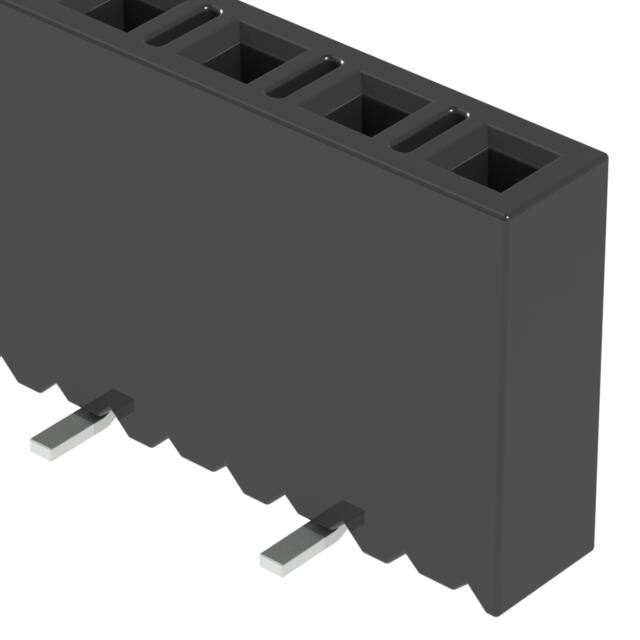

SSM-124-S-SV

Specifications

Contact Materials

Phosphor Bronze

Insulation Height

0.290 7.37mm

Contact Shape

Square

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.100 2.54mm

Uzunluk

61mm

Current Rating Amps

5.2A per Contact

Withdrawl Forcemin

.556 N

Number Of Conductors

ONE

Number Of Positions Loaded

All

Parça Durumu

Active

Fastening Type

Push-Pull

Housing Color

Black

Option

GENERAL PURPOSE

Mixed Contacts

NO

Total Number Of Contacts

24

Seri

SSM

Genişlik

2.54mm

Insulation Resistance

5000000000Ohm

Contact Type

Female Socket

Terminal

Solder

Filter Feature

NO

Plating Thickness

30μin

Montaj Tipi

Surface Mount

Connector Type

Receptacle, Pass Through

Contact Finish Thickness Mating

30.0μin 0.76μm

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

Gender

Female

Reference Standard

UL

JESD-609 Kodu

e3

Yayın Yılı

2000

Montaj

Surface Mount

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Finish Post

Tin

Din Conformance

NO

Additional Feature

E.L.P., TIGER CLAW

Housing Material

Plastic

Pcb Contact Row Spacing

2.8448 mm

Iec Conformance

NO
