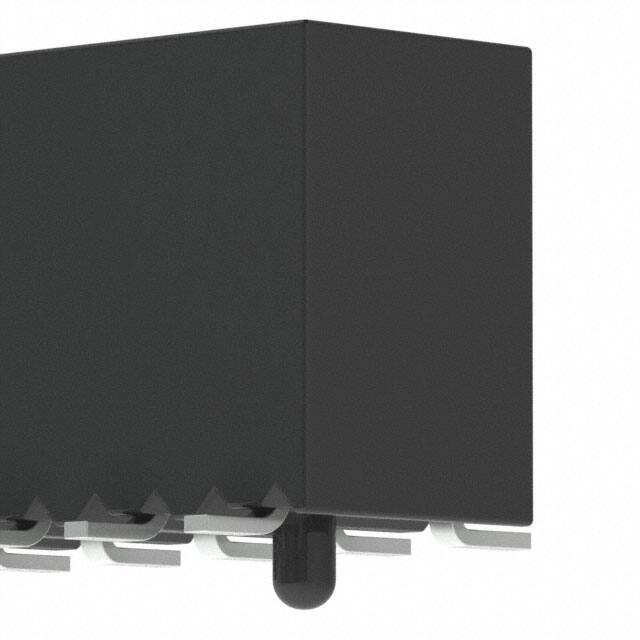

SSM-123-L-DV-A

Specifications

Seri

SSM

Nominal Gerilim

405VAC 572VDC

Mil Conformance

NO

Pozisyon Sayısı

46

Contact Finish Mating

Gold

Total Number Of Contacts

46

Iec Conformance

NO

Style

Board to Board or Cable

Kurşunsuz Kodu

yes

Parça Durumu

Active

Option

GENERAL PURPOSE

Mixed Contacts

NO

Fastening Type

Push-Pull

Filter Feature

NO

Connector Type

Receptacle, Pass Through

Montaj Tipi

Surface Mount

RoHS Durumu

ROHS3 Compliant

Contact Type

Female Socket

Ul Flammability Code

94V-0

Özellikler

Board Guide

Terminal

Solder

Sıra Sayısı

2

Row Spacing Mating

0.100 (2.54mm)

Gender

Female

Current Rating Amps

5.2A per Contact

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

10.0μin 0.25μm

Çalışma Sıcaklığı

-55°C~125°C

Pitch Mating

0.100 2.54mm

Insulation Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Insulation Height

0.290 7.37mm

Ambalaj

Bulk

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Finish Post

Tin

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

3 Weeks

Din Conformance

NO

Yayın Yılı

2016
