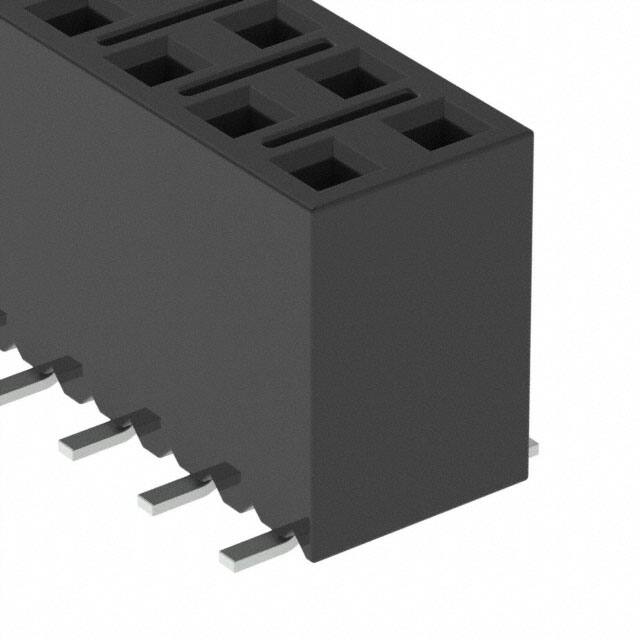

SSM-106-L-DV-A

Specifications

Pitch Mating

0.100 2.54mm

Withdrawl Forcemin

.556 N

Insulation Resistance

5000000000Ohm

Pcb Contact Pattern

RECTANGULAR

Pcb Contact Row Spacing

5.588 mm

Total Number Of Contacts

12

Dielectric Withstanding Voltage

1000VAC V

Contact Type

Female Socket

HTS Kodu

8536.69.40.40

Çalışma Sıcaklığı

-55°C~125°C

Number Of Pcb Rows

2

Insulation Height

0.290 7.37mm

Contact Materials

Phosphor Bronze

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Fabrika Tedarik Süresi

3 Weeks

Nominal Gerilim

405VAC 572VDC

Current Rating Amps

5.2A per Contact

Number Of Conductors

ONE

ECCN Kodu

EAR99

Contact Finish Mating

Gold

Sıra Sayısı

2

Contact Finish Post

Tin

Pozisyon Sayısı

12

Reference Standard

UL

Gender

Receptacle

Style

Board to Board or Cable

Contact Resistance

10mOhm

Mating Contact Pitch

0.1 inch

Connector Type

Receptacle, Pass Through

Row Spacing Mating

0.100 (2.54mm)

Plating Thickness

10μin

Fastening Type

Push-Pull

Radyasyon Dayanımı

No

Body Length Or Diameter

0.6 inch

Number Of Positions Loaded

All

Insulation Color

Black

Contact Shape

Square

RoHS Durumu

ROHS3 Compliant

Insertion Forcemax

1.39 N
