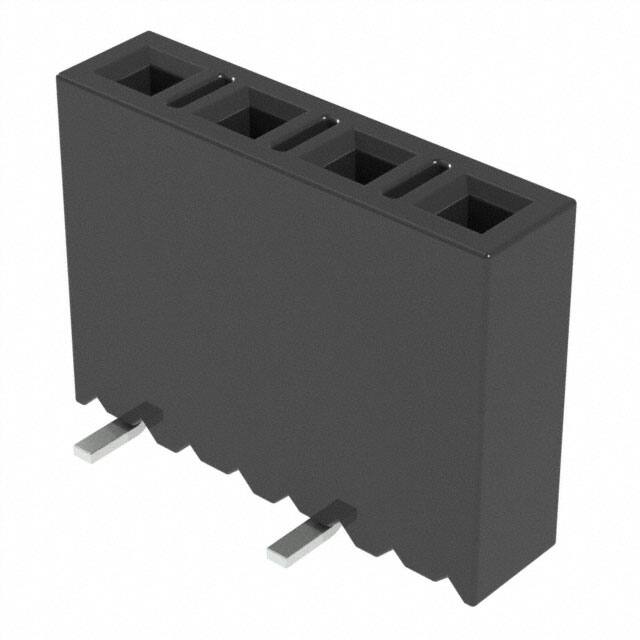

SSM-104-S-SV

Specifications

Withdrawl Forcemin

.556 N

Option

GENERAL PURPOSE

Pitch Mating

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Insulation Resistance

5000000000Ohm

Filter Feature

NO

Total Number Of Contacts

4

Kurşunsuz Kodu

yes

Housing Material

Plastic

Contact Type

Female Socket

Çalışma Sıcaklığı

-55°C~125°C

Number Of Pcb Rows

2

Housing Color

Black

Iec Conformance

NO

Contact Materials

Phosphor Bronze

Insulation Height

0.290 7.37mm

Parça Durumu

Active

Current Rating Amps

5.2A per Contact

Number Of Conductors

ONE

Genişlik

2.54mm

Nominal Gerilim

405VAC 572VDC

Contact Finish Mating

Gold

Contact Finish Post

Tin

Sıra Sayısı

1

Montaj

Surface Mount

Kurşunsuz

Lead Free

Yükseklik

7.37mm

Uzunluk

10.2mm

Reference Standard

UL

Pozisyon Sayısı

4

Gender

Female

Style

Board to Board or Cable

Connector Type

Receptacle, Pass Through

Mixed Contacts

NO

Plating Thickness

30μin

Radyasyon Dayanımı

No

Fastening Type

Push-Pull

Number Of Positions Loaded

All

Contact Shape

Square

RoHS Durumu

ROHS3 Compliant
