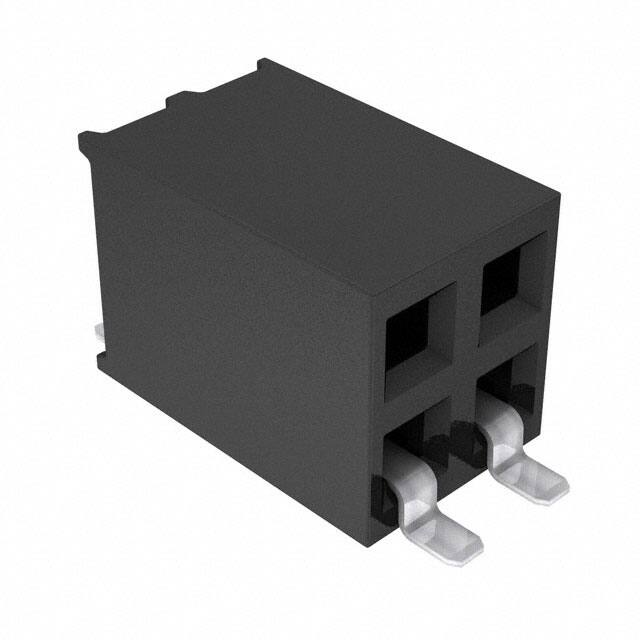

SSM-102-S-DH

Specifications

Fastening Type

Push-Pull

Radyasyon Dayanımı

No

Plating Thickness

30μin

Row Spacing Mating

0.100 (2.54mm)

Connector Type

Receptacle

Mixed Contacts

NO

Mating Contact Pitch

0.1 inch

Contact Shape

Square

Number Of Positions Loaded

All

Mil Conformance

NO

Additional Feature

E.L.P., TIGER CLAW

Contact Finish Thickness Mating

30.0μin 0.76μm

Ambalaj

Tube

Terminal

Solder

Insulation Materials

Liquid Crystal Polymer (LCP)

Insertion Forcemax

1.39 N

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2000

Din Conformance

NO

Montaj Tipi

Surface Mount, Right Angle

JESD-609 Kodu

e3

Seri

SSM

Pcb Contact Row Spacing

10.16 mm

Pcb Contact Pattern

RECTANGULAR

Filter Feature

NO

Insulation Resistance

5000000000Ohm

Withdrawl Forcemin

.556 N

Pitch Mating

0.100 2.54mm

Option

GENERAL PURPOSE

Number Of Pcb Rows

2

Iec Conformance

NO

Housing Color

Black

Çalışma Sıcaklığı

-55°C~125°C

Housing Material

Plastic

Contact Type

Female Socket

Kurşunsuz Kodu

yes

Dielectric Withstanding Voltage

1000VAC V

Total Number Of Contacts

4

Contact Finish Mating

Gold

Number Of Conductors

ONE
