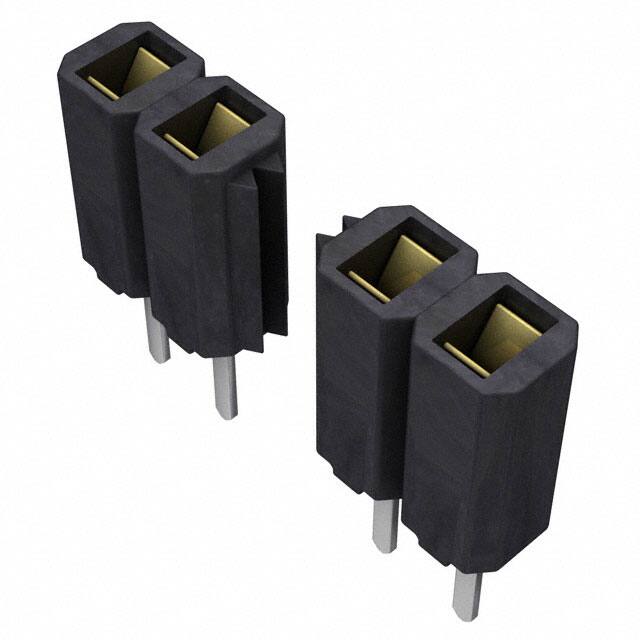

SSA-132-S-G

Specifications

Reference Standard

UL

Reliability

COMMERCIAL

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Reach Svhc

No SVHC

Body Depth

0.23 inch

Gender

Receptacle

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

Pozisyon Sayısı

32

Filter Feature

NO

Contact Resistance

10mOhm

Insulation Materials

Polyethylene Terephthalate (PET), Polyester

Sıra Sayısı

1

Option

GENERAL PURPOSE

Housing Color

Black

Contact Shape

Square

Material Flammability Rating

UL94 V-0

Plating Thickness

30μin

Contact Finish Thickness Mating

10.0μin 0.25μm

Pitch Mating

0.100 2.54mm

Kurşunsuz Kodu

yes

Din Conformance

NO

Number Of Pcb Rows

1

JESD-609 Kodu

e4

Pcb Contact Pattern

RECTANGULAR

Connector Type

Receptacle, Breakaway

Seri

SSA

Mil Conformance

NO

Montaj Tipi

Through Hole

Nominal Gerilim

1000V

Insulation Height

0.230 5.85mm

Akım Değeri

1A

Insulation Resistance

5GOhm

Terminal

Solder

Flammability Rating

UL94 V-0

Lead Pitch

2.54mm

Orientation

Straight

Fastening Type

Push-Pull

Mixed Contacts

NO

Contact Finish Mating

Gold
