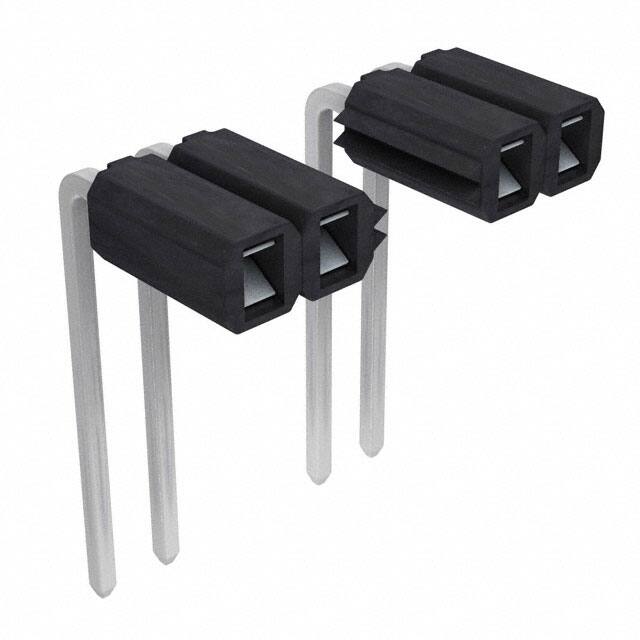

SSA-130-W-T-RA

Specifications

Ambalaj

Bulk

Gender

Female

Body Depth

0.29 inch

HTS Kodu

8536.69.40.40

Çalışma Sıcaklığı

-55°C~105°C

Pozisyon Sayısı

30

Insulation Materials

Polyethylene Terephthalate (PET), Polyester

Filter Feature

NO

Reliability

COMMERCIAL

Genişlik

5.46mm

Reference Standard

UL

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Uzunluk

76.2mm

Pitch Mating

0.100 2.54mm

Sıra Sayısı

1

Housing Color

Black

Option

GENERAL PURPOSE

Contact Shape

Square

Terminal

Wire Wrap

Fastening Type

Push-Pull

Flammability Rating

UL94 V-0

Montaj

Through Hole

Contact Finish Mating

Tin

Mixed Contacts

NO

Contact Materials

Phosphor Bronze

Number Of Positions Loaded

All

Style

Board to Board

Kurşunsuz Kodu

yes

Connector Type

Receptacle, Breakaway

Pcb Contact Pattern

RECTANGULAR

Number Of Pcb Rows

1

JESD-609 Kodu

e3

Din Conformance

NO

Montaj Tipi

Through Hole, Right Angle

Mil Conformance

NO

Seri

SSA

Insulation Resistance

5000000000Ohm

Nominal Gerilim

1000V

Insulation Height

0.100 2.54mm
