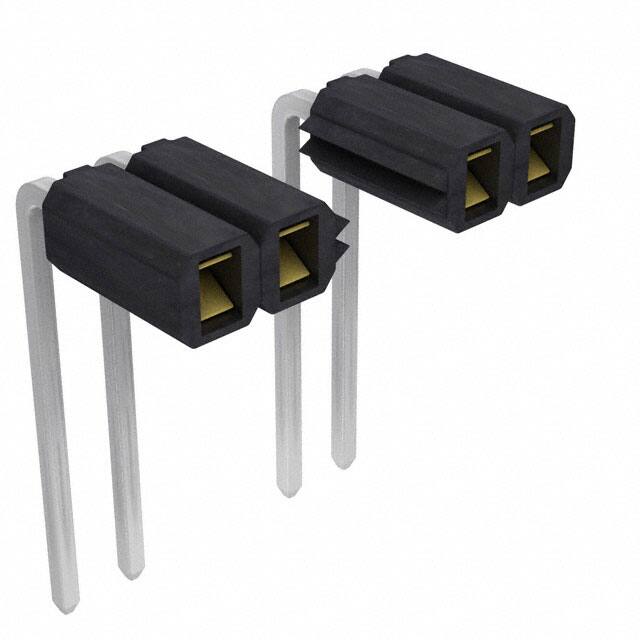

SSA-121-W-G-RA

Specifications

Pitch Mating

0.100 2.54mm

Uzunluk

53.34mm

Contact Finish Thickness Mating

10.0μin 0.25μm

Material Flammability Rating

UL94 V-0

Plating Thickness

30μin

Contact Shape

Square

Option

GENERAL PURPOSE

Housing Color

Black

Terminal Adımı

2.54mm

Sıra Sayısı

1

Insulation Materials

Polyethylene Terephthalate (PET), Polyester

Contact Resistance

10mOhm

Filter Feature

NO

Pozisyon Sayısı

21

Çalışma Sıcaklığı

-55°C~125°C

Gender

Female

HTS Kodu

8536.69.40.40

Ambalaj

Bulk

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Genişlik

5.46mm

Reference Standard

UL

Reliability

COMMERCIAL

Kurşunsuz

Lead Free

Ul Flammability Code

94V-0

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2003

Iec Conformance

NO

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

2 Weeks

Max Current Rating

1A

Depth

7.37mm

Insertion Forcemax

2.78 N

Housing Material

Polyethylene

Parça Durumu

Discontinued

Contact Length Post

0.575 14.61mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Female Socket

Style

Board to Board

Contact Materials

Phosphor Bronze
